Harvia Virta HL90E 9kW Electric Sauna Heater Package with Xenio Control & Sauna Stones
Voltage & Phase
Controller Package
Harvia Virta HL90E 9kW Electric Sauna Heater Package with Xenio Control & Sauna Stones
The Harvia Virta HL90E Electric Sauna Heater Package combines a 9kW electric sauna heater with a Harvia Xenio CX45 control package and three boxes of Harvia AC3020 sauna stones. Designed for sauna rooms from 177 to 494 cubic feet, the Virta HL90E provides consistent heat and allows water to be poured over the sauna stones for a traditional sauna experience.
Designed, engineered, and made in Finland, the Virta HL90E features durable steel construction, a separate stone compartment, and a floor-mounted design. The heating elements are positioned separately from the stones, and the design provides convenient access for maintenance and service.

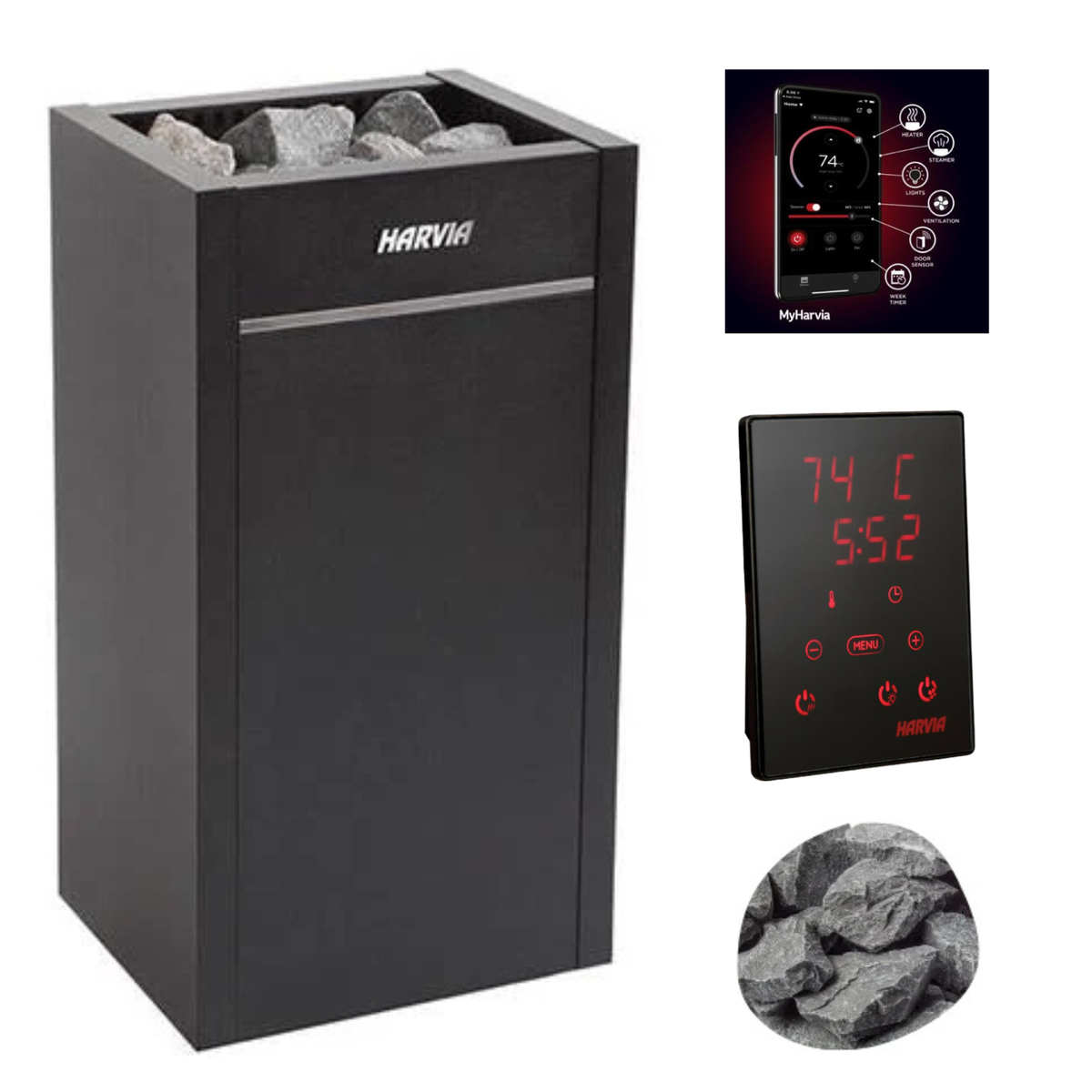

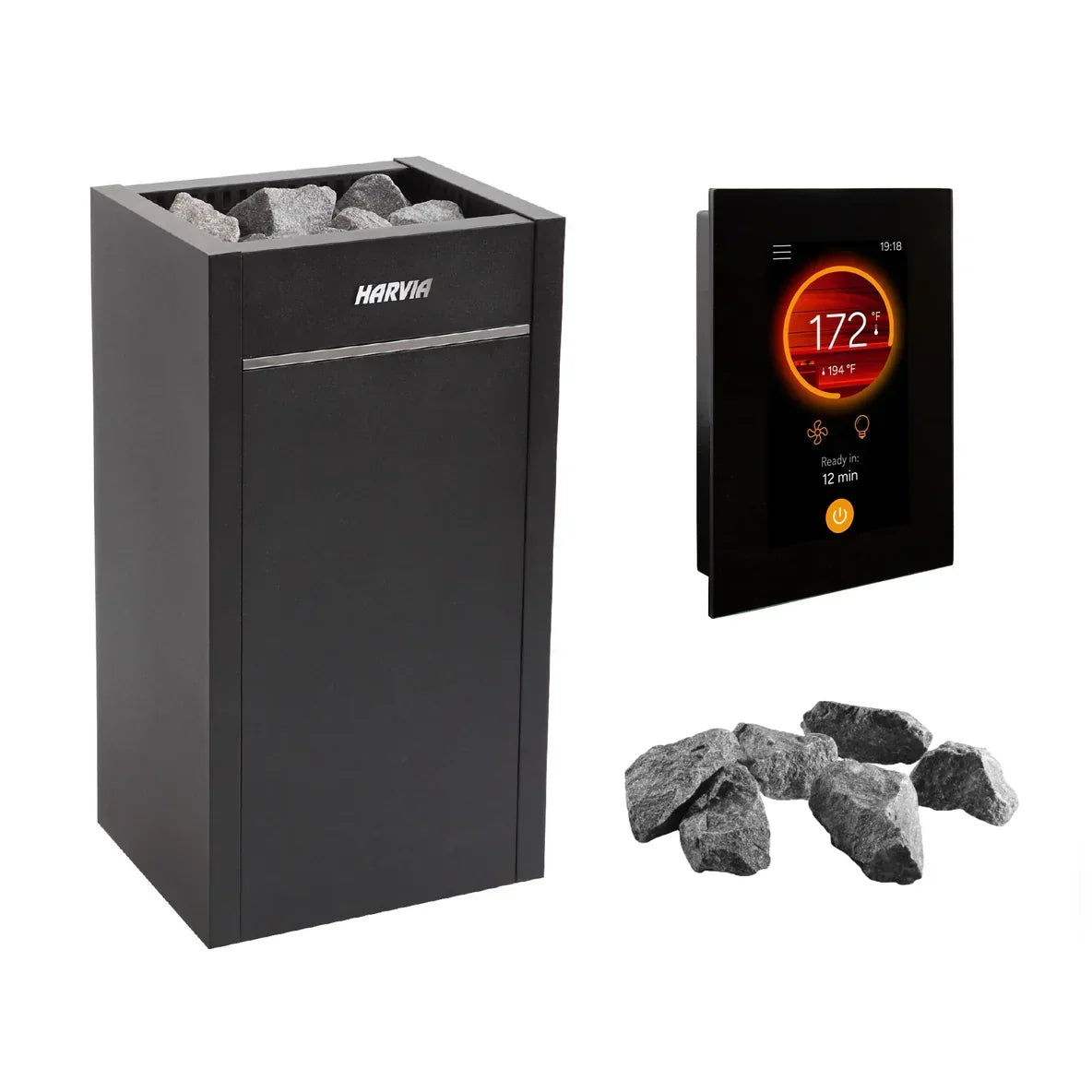

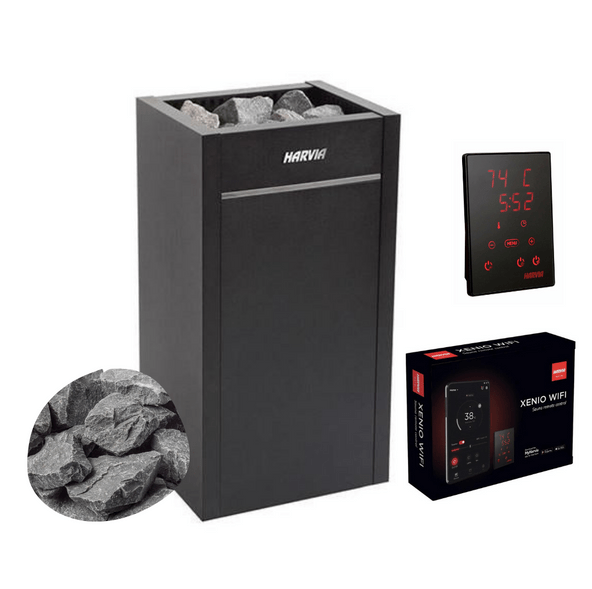

Complete Sauna Heater Package
This package includes the components needed to operate the sauna heater:
| Component | Included item |
|---|---|
| 1 | Harvia Virta HL90E 9kW Electric Sauna Heater |
| 2 | Harvia Xenio CX45 Sauna Control Package |
| 3 | Harvia AC3020 Sauna Stones |
| 4 | Optional: Harvia Xenio WiFi Remote Control |

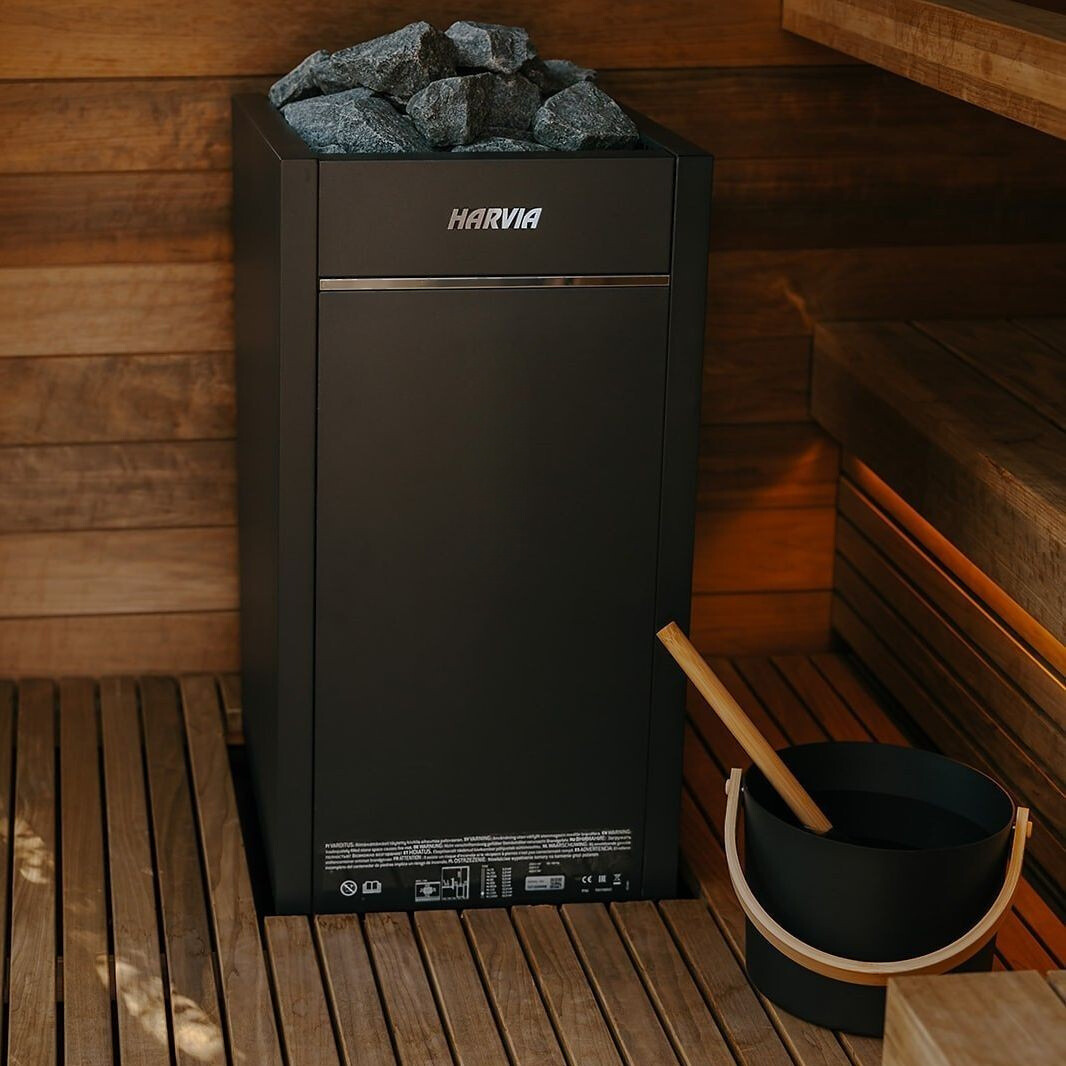

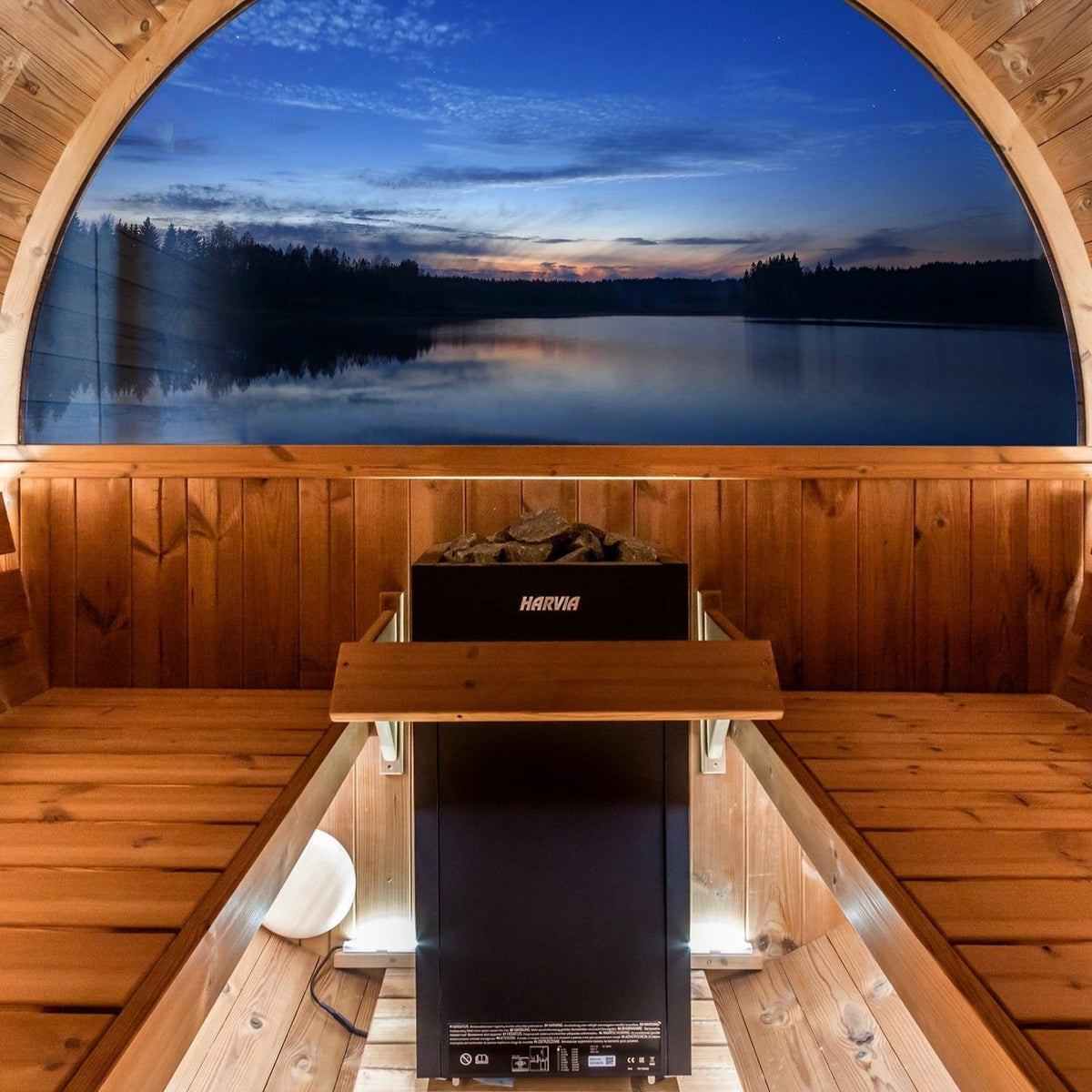

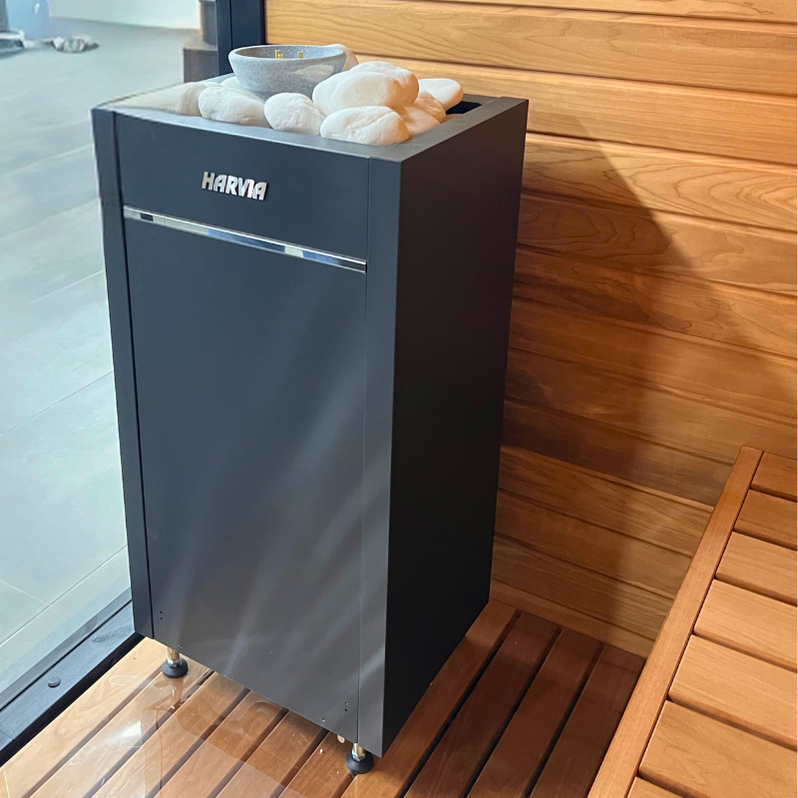

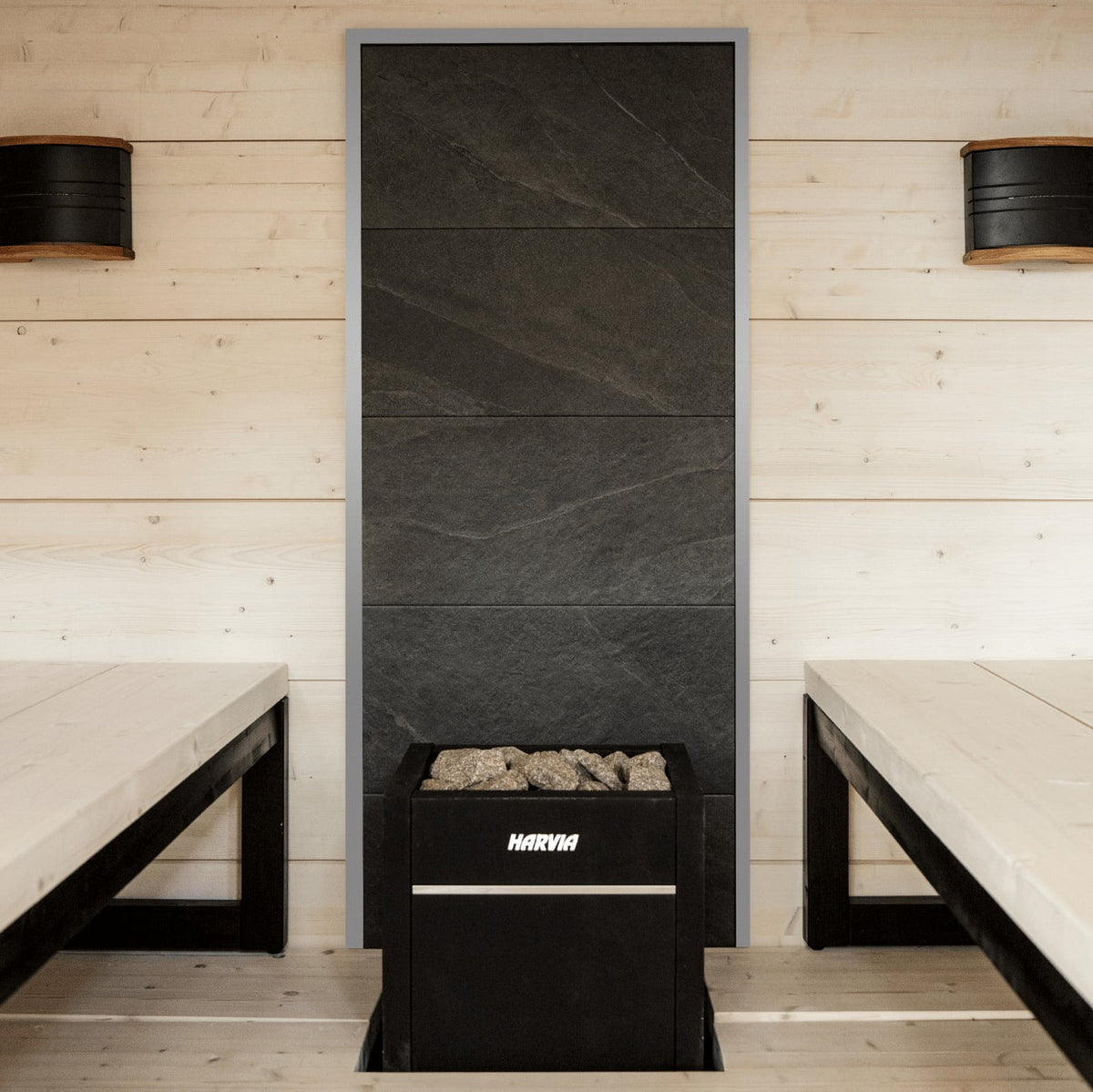

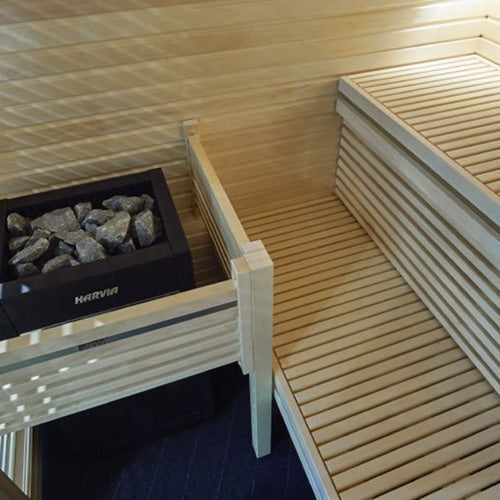

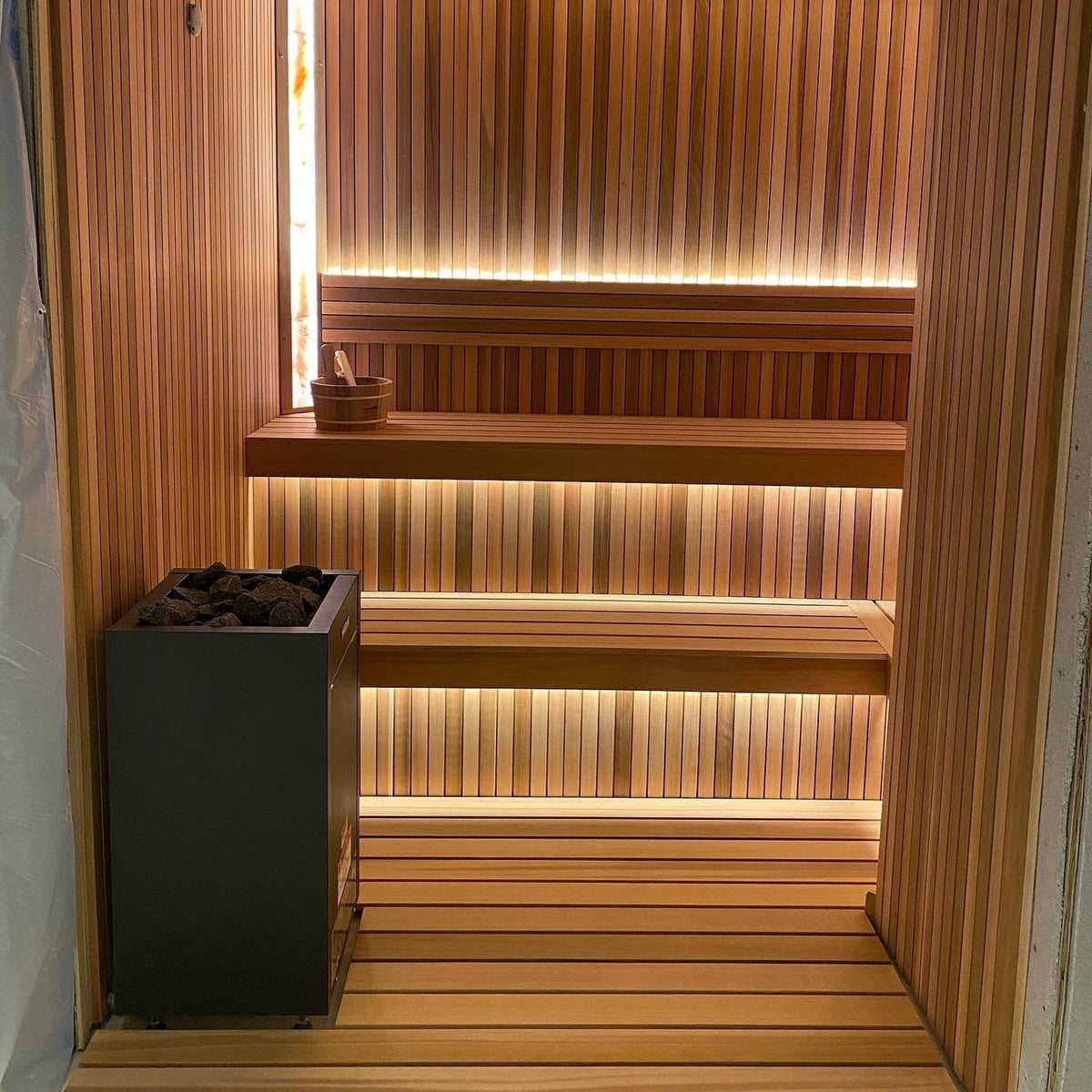

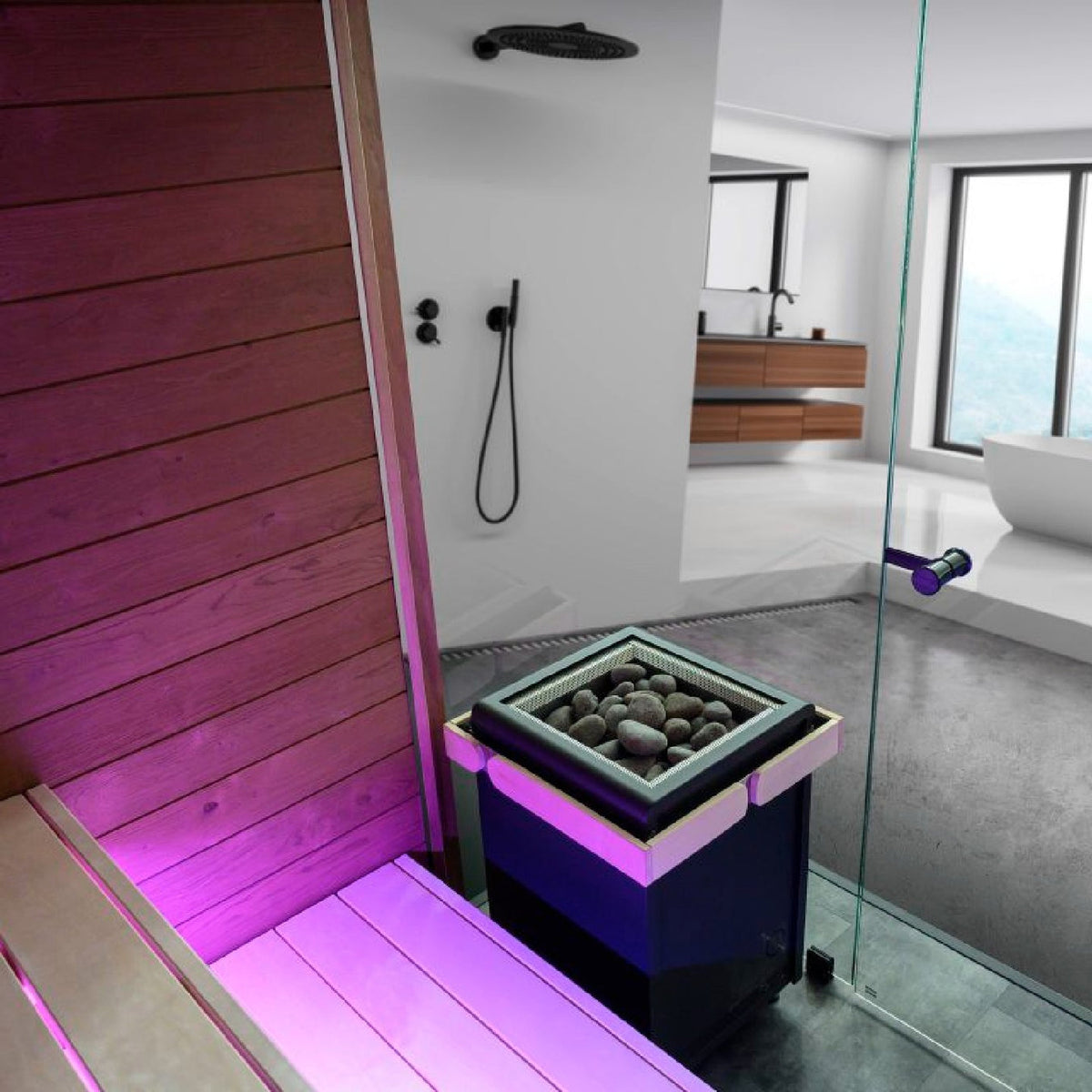

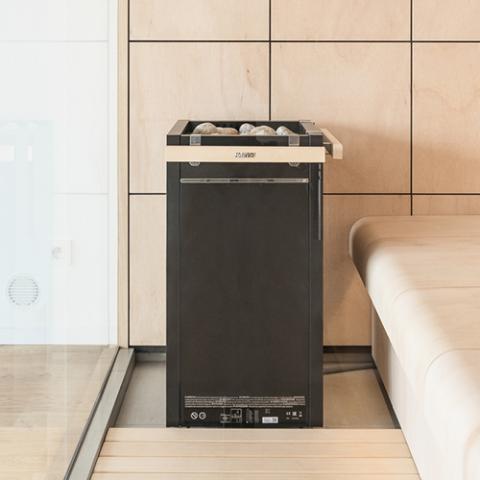

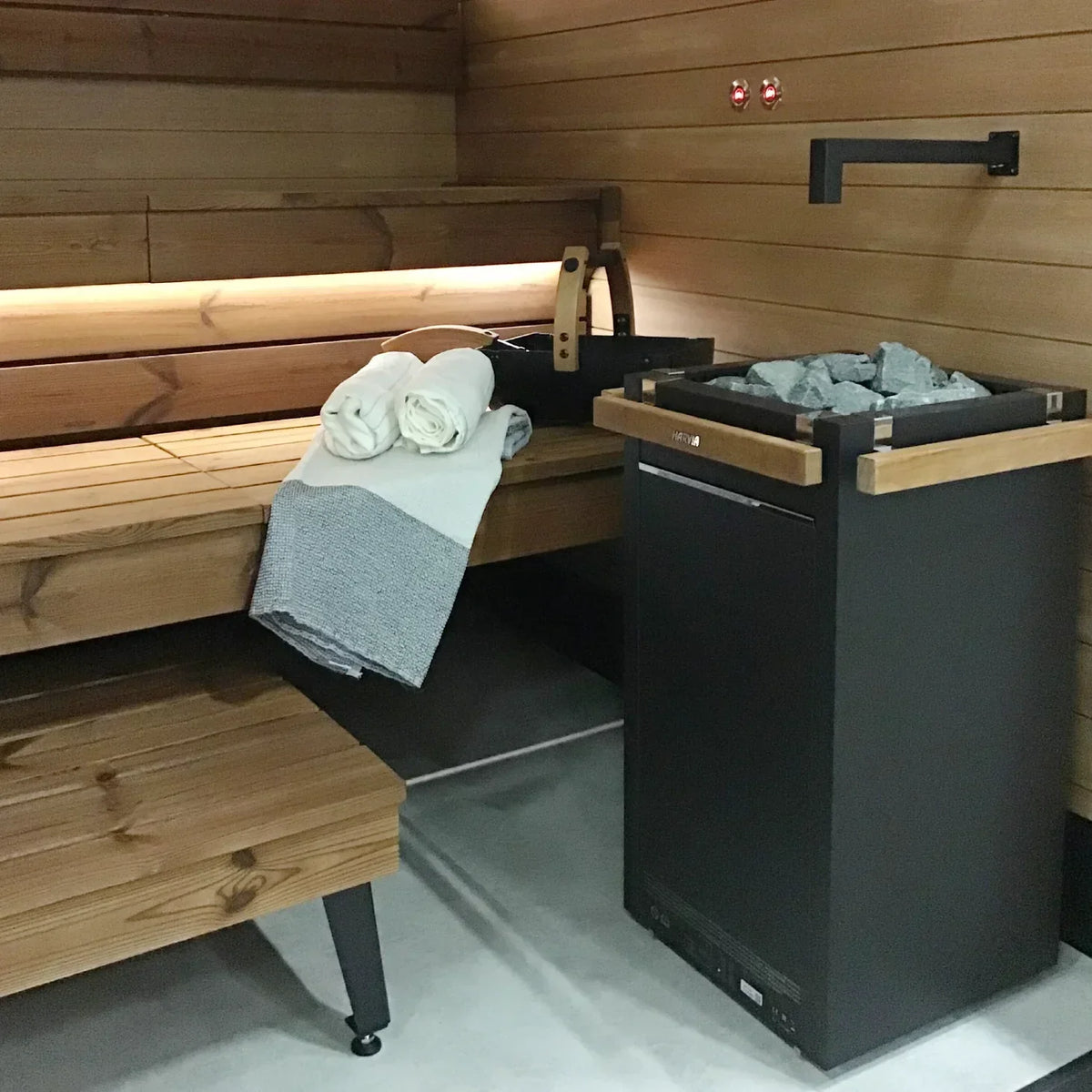

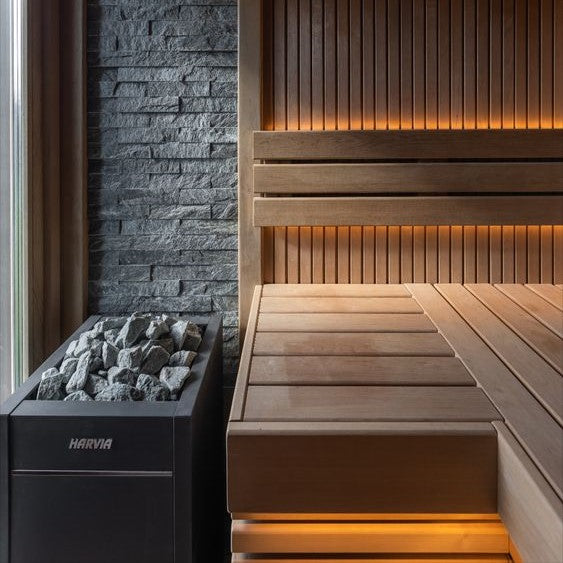

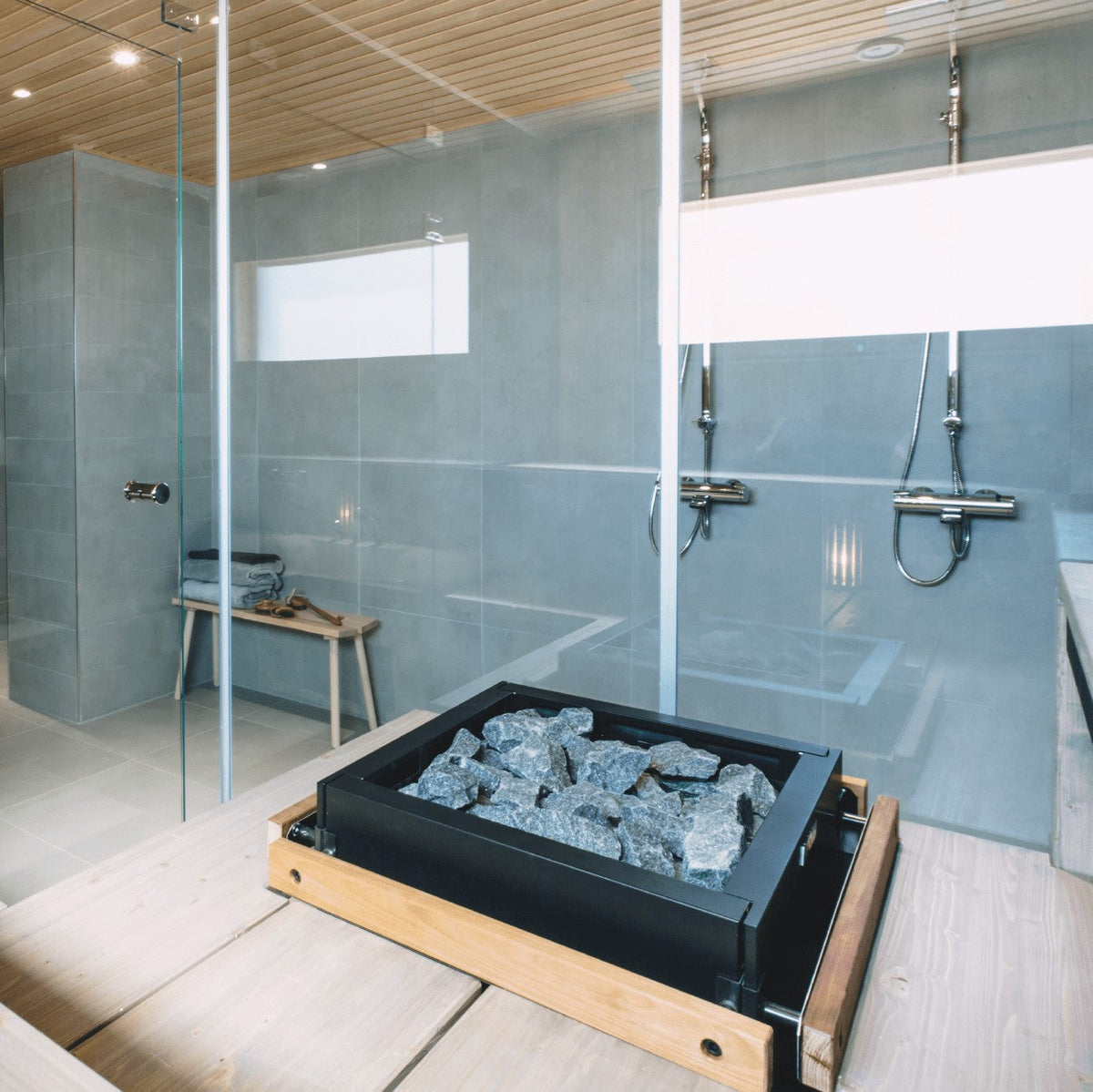

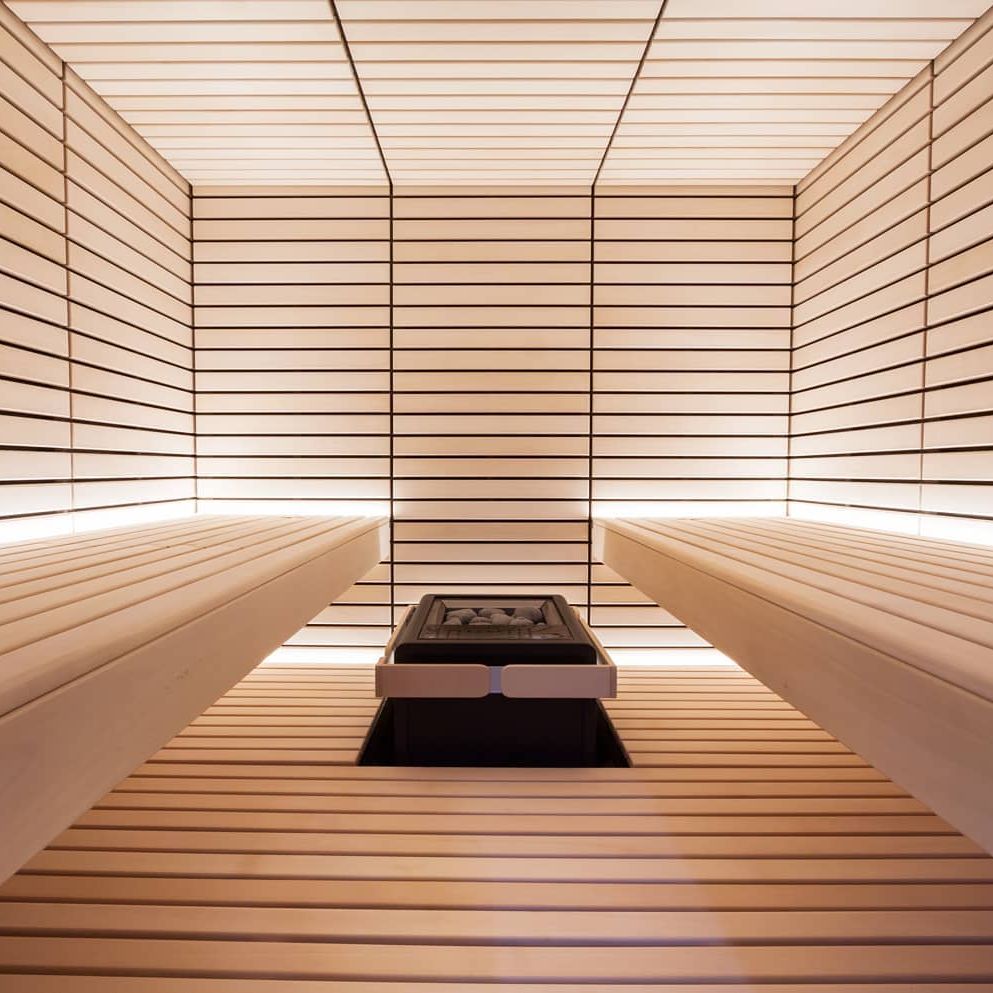

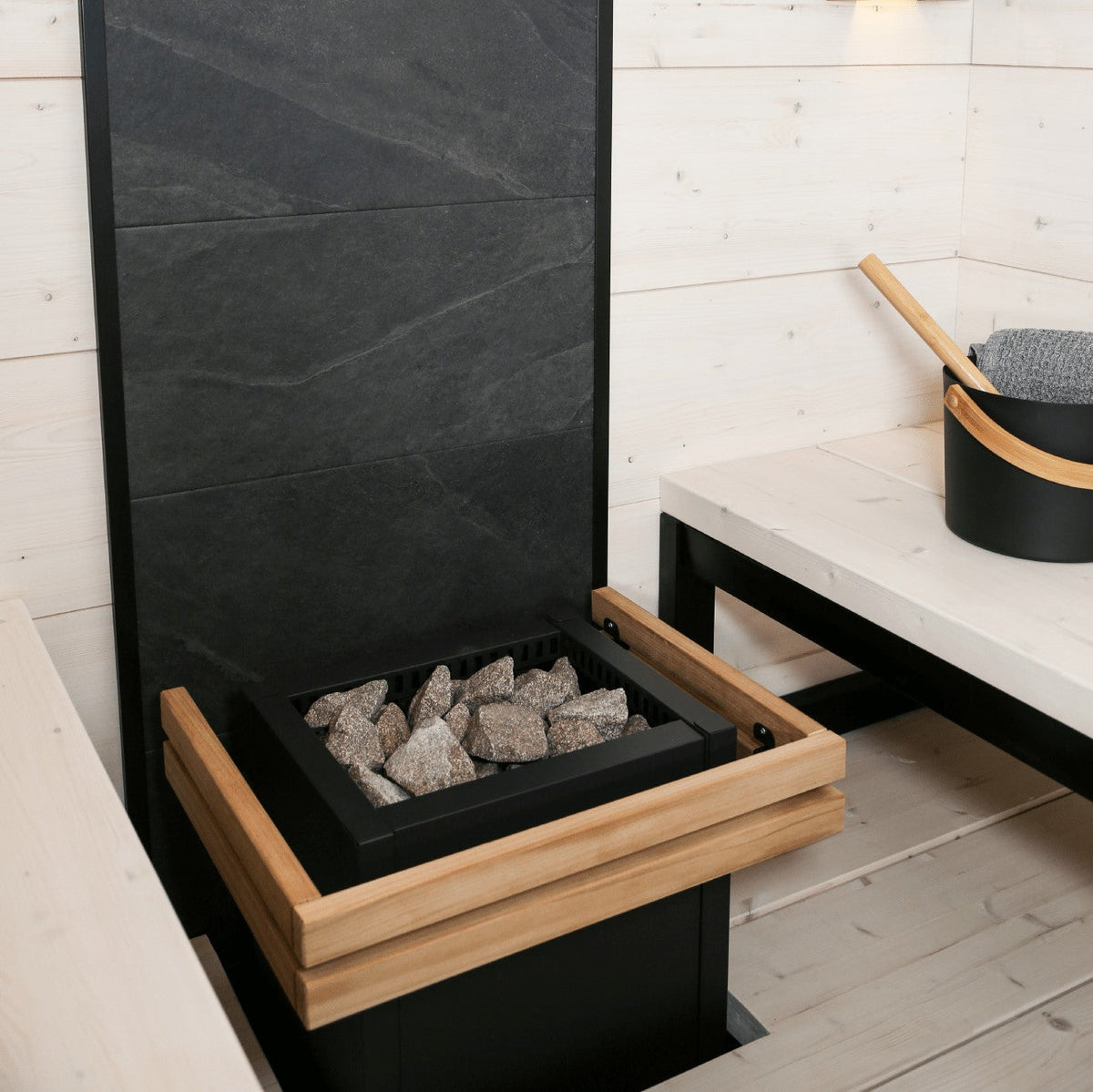

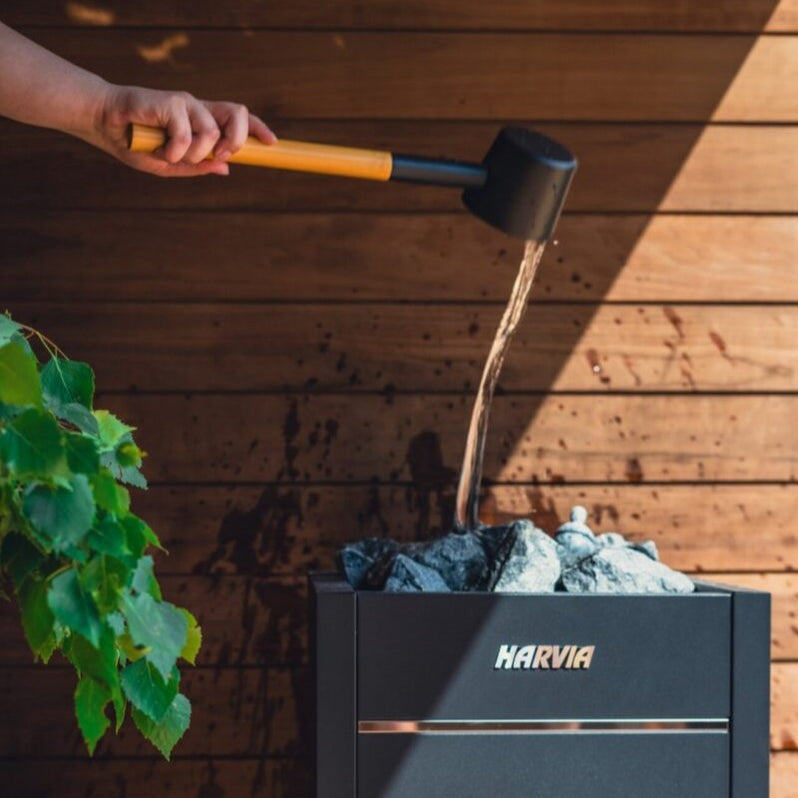

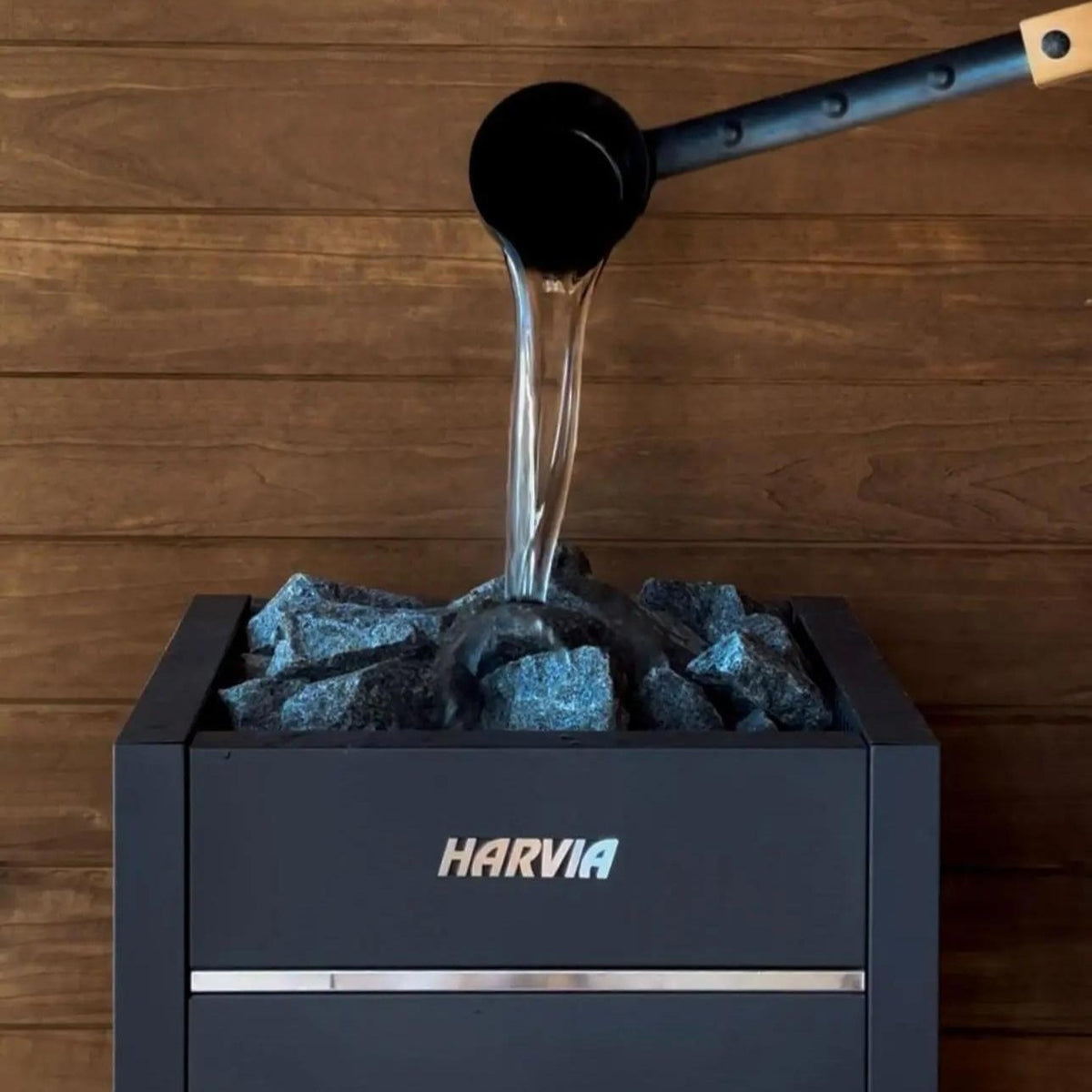

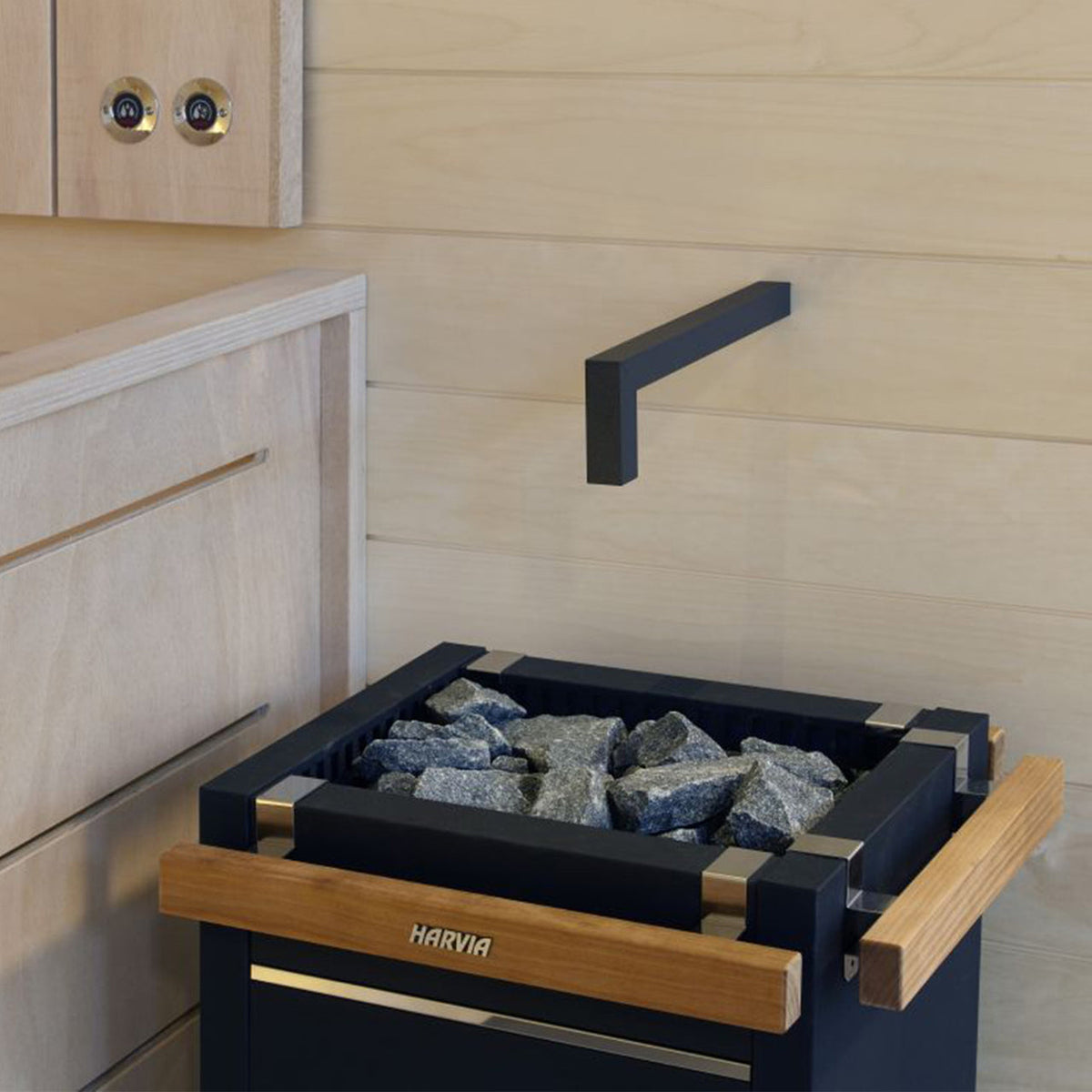

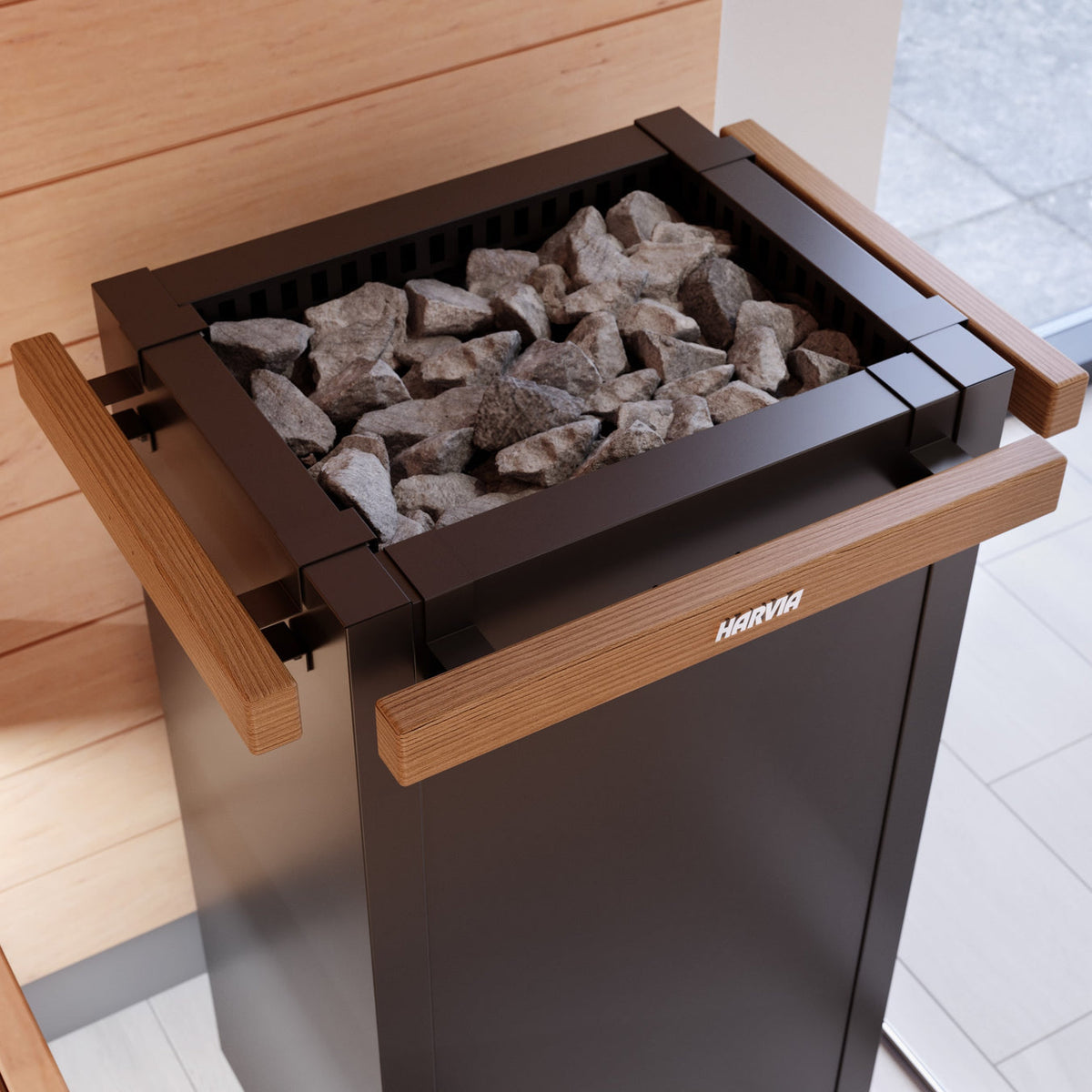

Harvia Virta HL90E Sauna Heater
The Harvia Virta HL90E is a 9kW electric sauna heater designed for sauna rooms measuring 177 to 494 cubic feet. Its floor-mounted design provides a practical installation option for residential sauna rooms, while the separate control system allows convenient adjustment of temperature and operating time.
The heater features a separate stone compartment and downward-facing heating elements. The heating elements are separated from the sauna stones, and the design provides easier access for maintenance and service.
Key Features
| Feature | Details |
|---|---|
| Power | 9kW electric sauna heater |
| Model | HL9U1UL / Virta HL90E |
| Room size | For sauna rooms from 177 to 494 cu. ft. |
| Electrical | 240V, single-phase, 60 Hz |
| Construction | Steel construction |
| Stone compartment | Separate stone compartment |
| Heating element position | Downward-facing heating elements |
| Design | Floor-mounted vertical design |
| Installation | Vertical installation |
| Controls | Works with a separate Harvia Xenio control |
| Heating elements | Serviceable heating elements separated from the sauna stones |
| Origin | Designed, engineered, and made in Finland |
| Stone amount | 110 lbs of sauna stones |
| Stone size | 5 to 10 cm, approximately 2 to 4 inches |
| IP rating | IPX4 |
| Dimensions | 16"W × 13"D × 33"H |

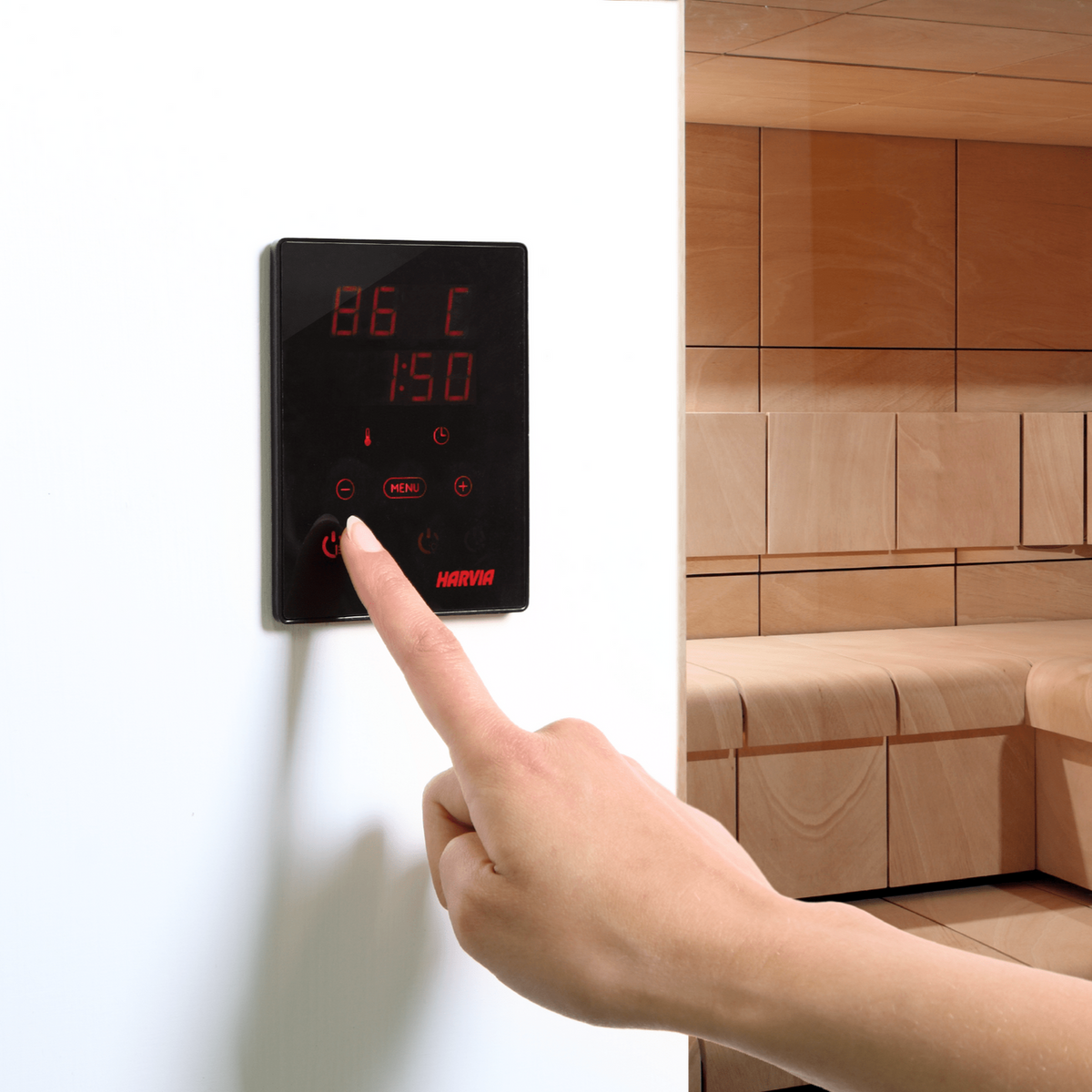

Harvia Xenio CX45 Sauna Control Package
The included Harvia Xenio CX45 control package provides control over operating time and temperature, along with connected lighting and fan functions.
It can be installed as a wall-mounted or surface-embedded control.
Xenio CX45 Features
| Feature | Details |
|---|---|
| Heater capacity | For up to 17kW heaters (U1) and 15kW heaters (U3) |
| Compatibility | Works with Cilindro, Club, and Virta series heaters |
| Operating time | Controls operating time |
| Temperature | Controls temperature |
| Lighting | Controls lighting |
| Fan | Controls fan |
| Installation | Wall-mounted or surface-embedded installation |
| Dimensions | Dimensions: 3.4"W × 1"D × 4.4"H |

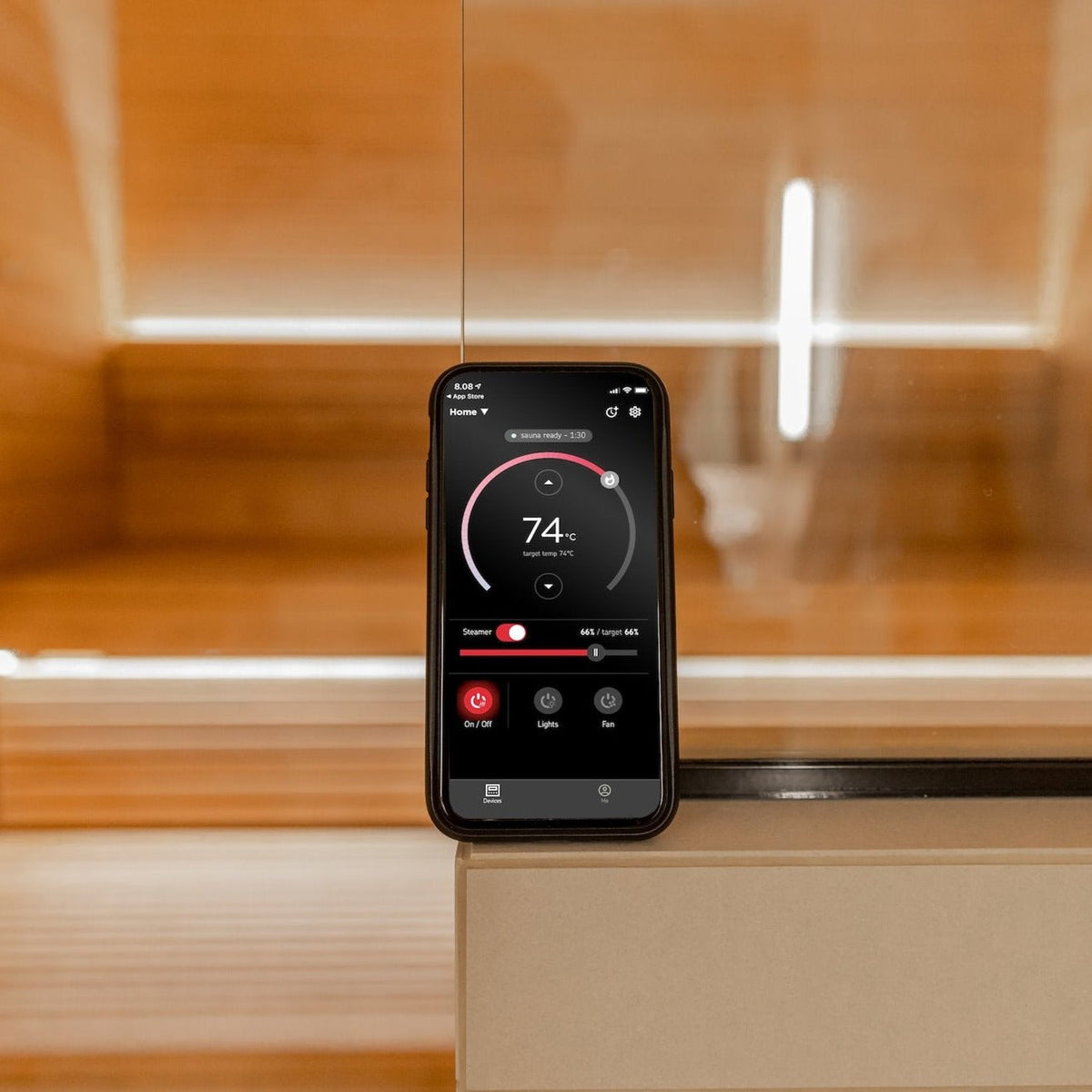

Optional Harvia Xenio WiFi Remote Control
The optional Harvia Xenio WiFi Remote Control provides a WiFi upgrade for compatible Xenio control systems and access to the MyHarvia application.
Available MyHarvia functions include:
| Function | Availability |
|---|---|
| Temperature | Temperature adjustment |
| Lighting | Lighting control |
| Fan | Fan control |
| On-time | On-time feature |
| Timed start | Timed start feature |
| Scheduling | Week clock |
| Safety | Safety device option |
| Time zone | Time zone selection |
| Daylight saving | Daylight saving selection |
| Humidity | Humidity adjustment |
| Updates | Control panel updates |
The application can be connected to an unlimited number of devices. Application availability varies by country.

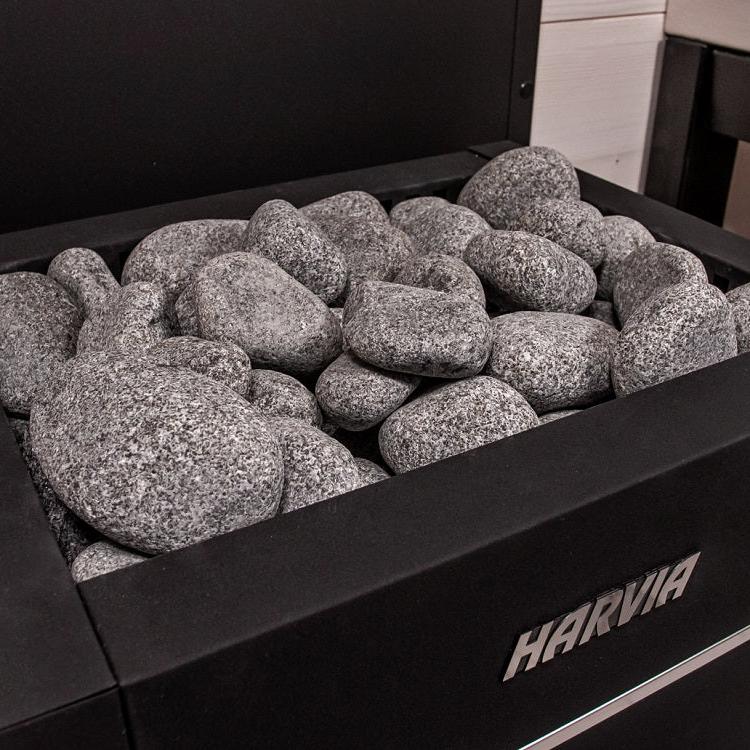

Harvia AC3020 Sauna Stones
The package includes three boxes of Harvia AC3020 sauna stones. The Virta HL90E requires approximately 110 lbs of sauna stones, with the recommended stone size being 5 to 10 cm, approximately 2 to 4 inches.
Because natural sauna stones vary in shape and size, an additional box may be useful when selecting stones for the best fit, form, and function.
Specifications
| Specification | Harvia Virta HL90E |
|---|---|
| Kilowatt Rating | 9 kW |
| Model | HL9U1UL / Virta HL90E |
| Primary Fuel | Electric |
| Minimum Sauna Room Volume | 177 cu. ft. |
| Maximum Sauna Room Volume | 494 cu. ft. |
| Voltage | 240V |
| Phase | 1 phase |
| Frequency | 60 Hz |
| Heater Weight | 50.7 lbs |
| Stone Amount | 110 lbs |
| Stone Size | 5 to 10 cm / approximately 2 to 4 inches |
| Width | 16" (406mm) |
| Depth | 13" (330mm) |
| Height | 33" (838mm) |
| IP Rating | IPX4 |
| Certification | ETL |
Installation & Safety
Installation should follow the manufacturer's installation instructions and required safety clearances. The Harvia Virta HL90E requires a compatible separate control unit and should be installed according to Harvia's specified electrical, clearance, and ventilation requirements. Refer to the supplied Harvia Virta and Xenio manuals for complete installation and operating information.
