Harvia Cilindro PC110E 10.5kW Sauna Heater Package with Xenio Control & Sauna Stones
Controller Package
Harvia Cilindro PC110E 10.5kW Sauna Heater Package with Xenio Controls & Sauna Stones
The Harvia Cilindro PC110E Sauna Heater Package combines a powerful 10.5kW pillar-style electric sauna heater with a Harvia Xenio CX45 control package and six boxes of Harvia AC3000 Special Sauna Stones. Designed for sauna rooms from 141 to 636 cubic feet, this package provides the essential components needed to operate the heater.
The Cilindro PC110E features a large stone capacity and an open pillar design that allows you to adjust the character of the steam by adding water to different areas of the stone column. Its vertical design also provides flexible placement options, including side-wall and corner installations.

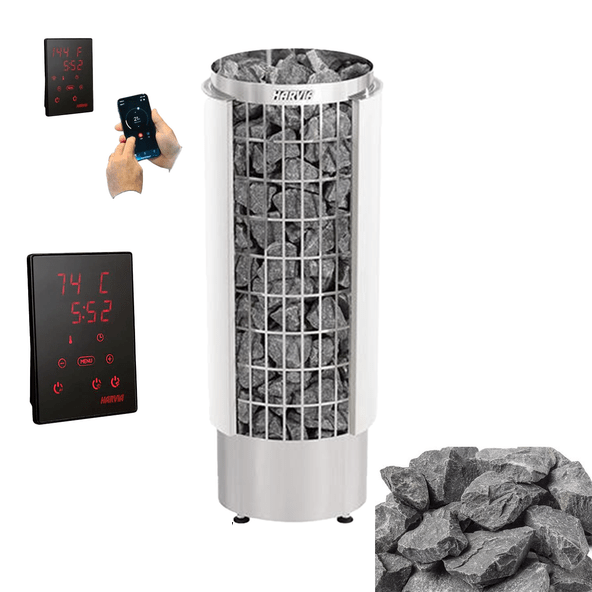

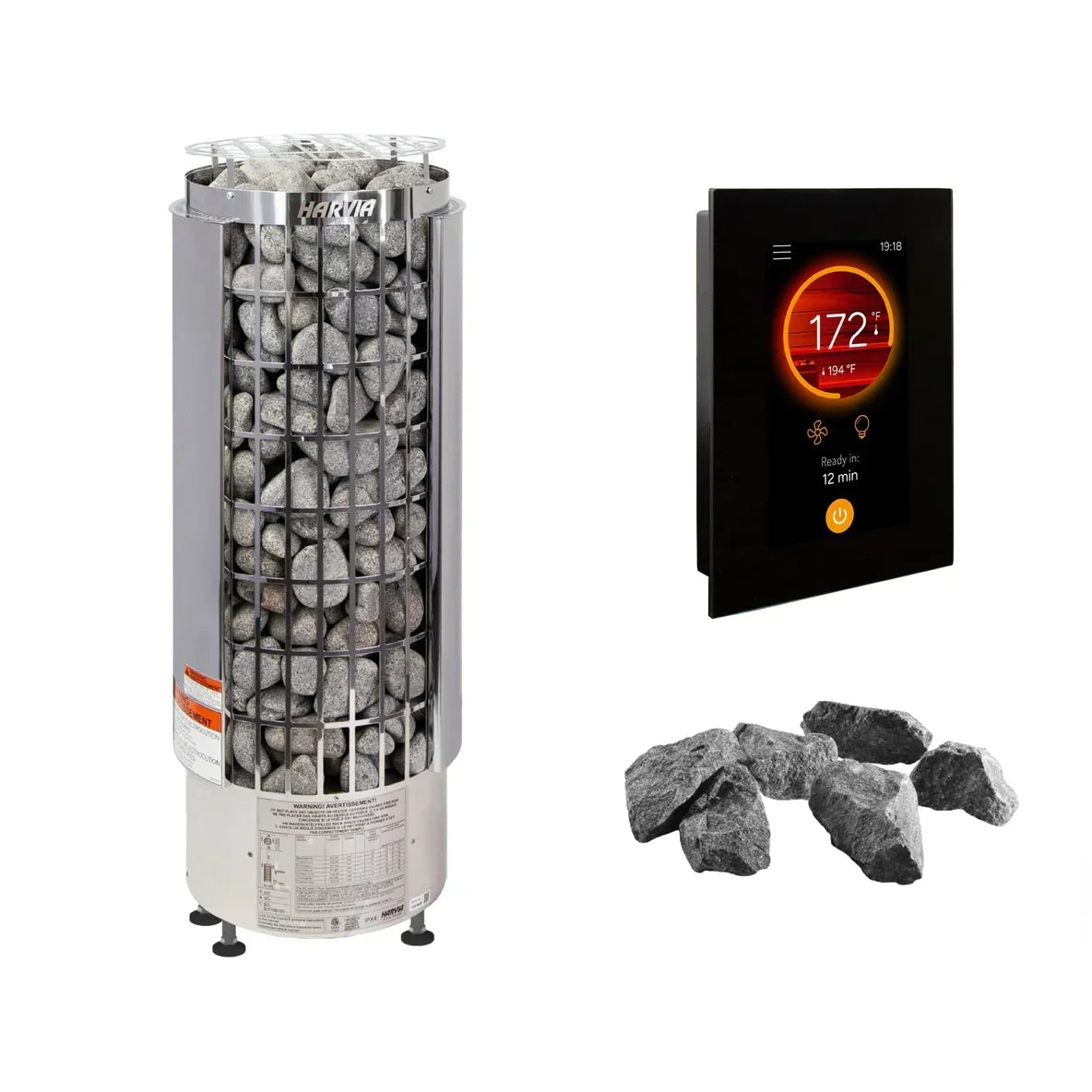

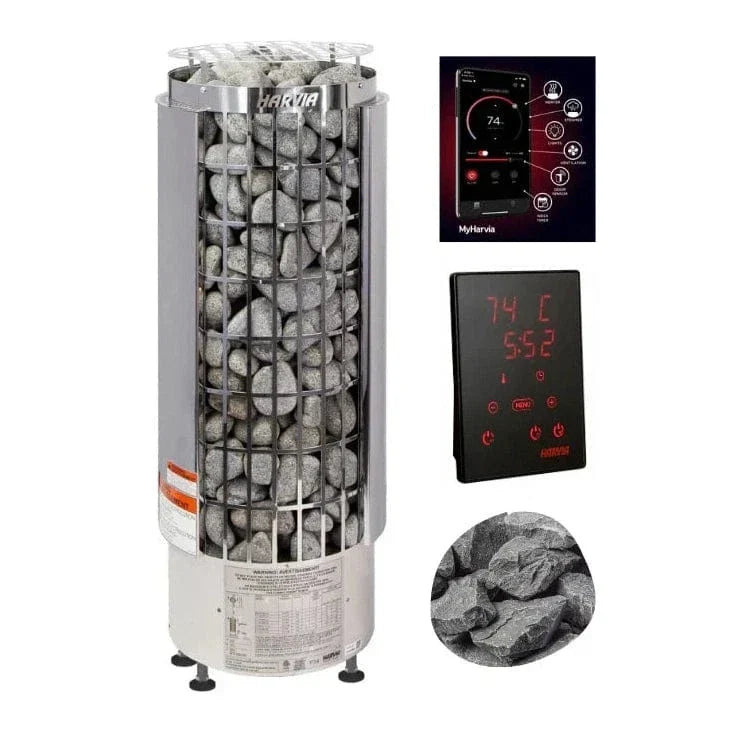

Complete Sauna Heater Package
This package includes:
| Component | Included Item |
|---|---|
| 1 | Harvia Cilindro PC110E 10.5kW Sauna Heater |
| 2 | Harvia Xenio CX45 Sauna Control Package |
| 3 | Harvia AC3000 Special Sauna Stones – 6 Boxes |
| 4 | Optional: Harvia Xenio WiFi Controller |

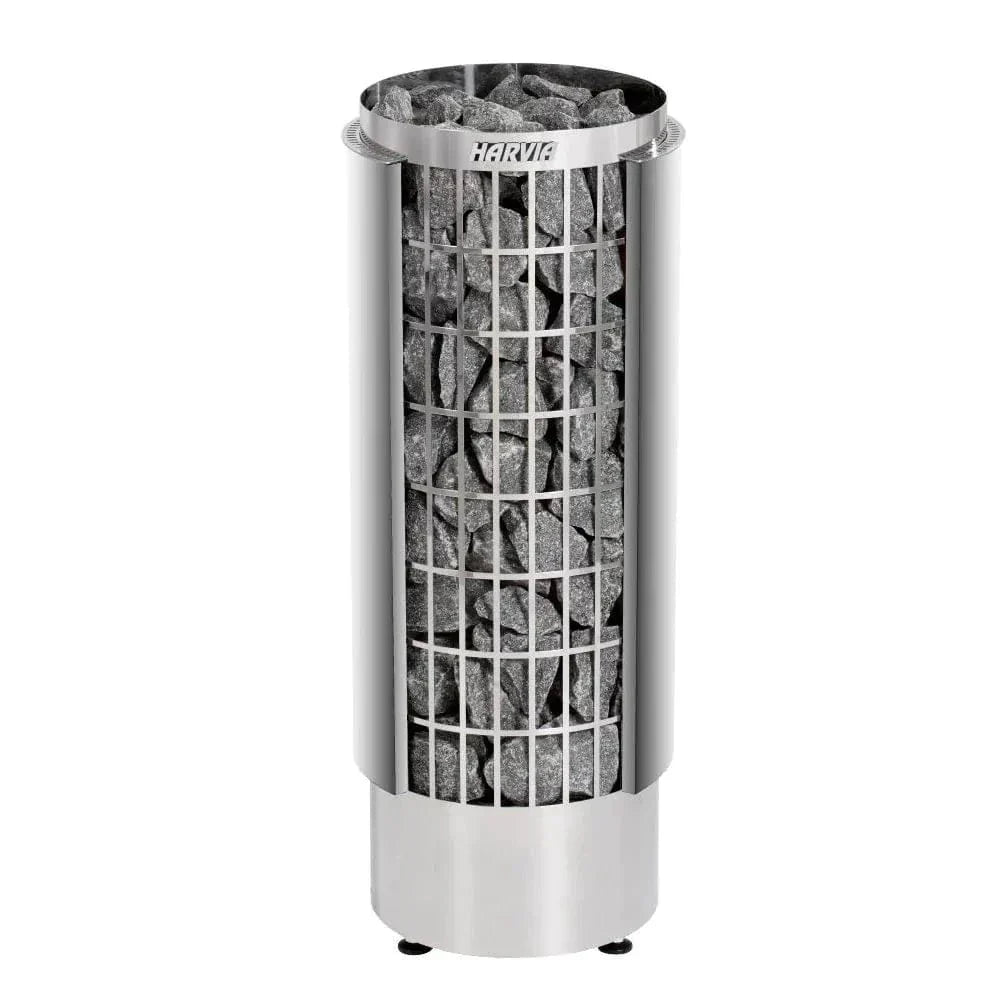

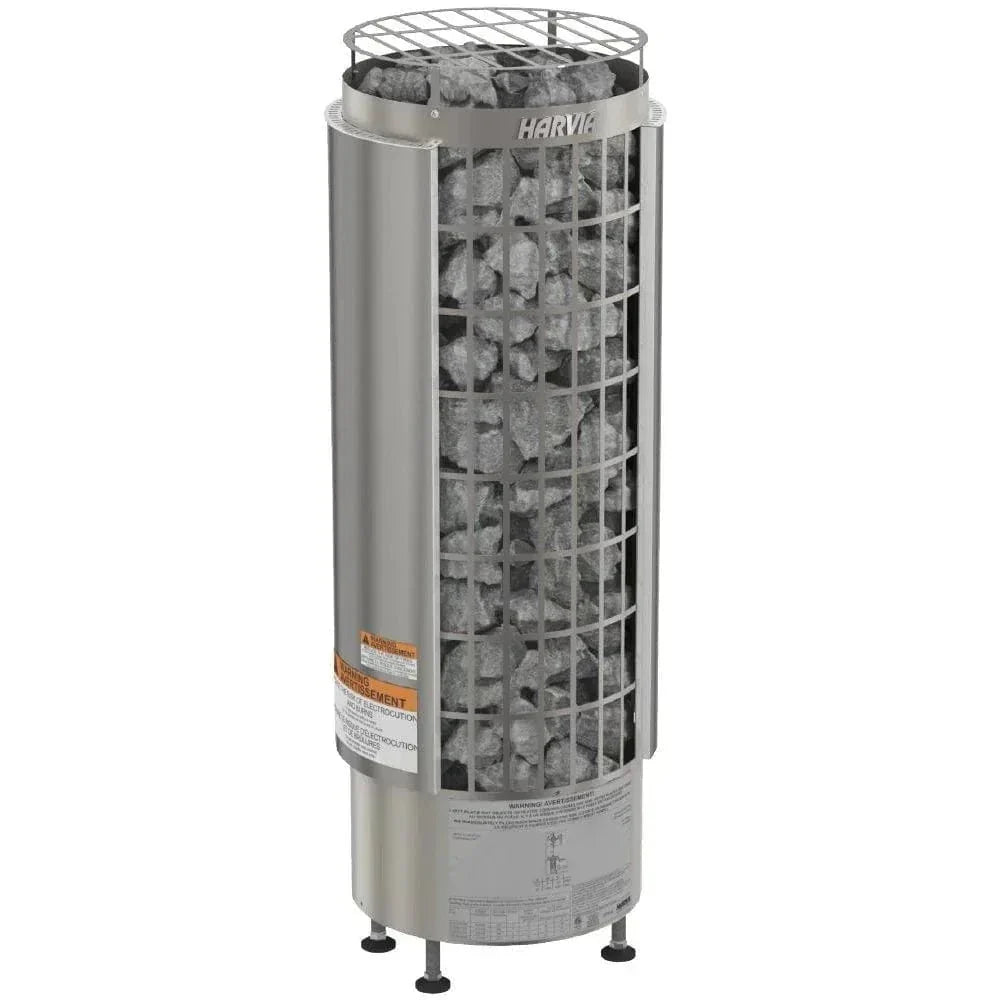

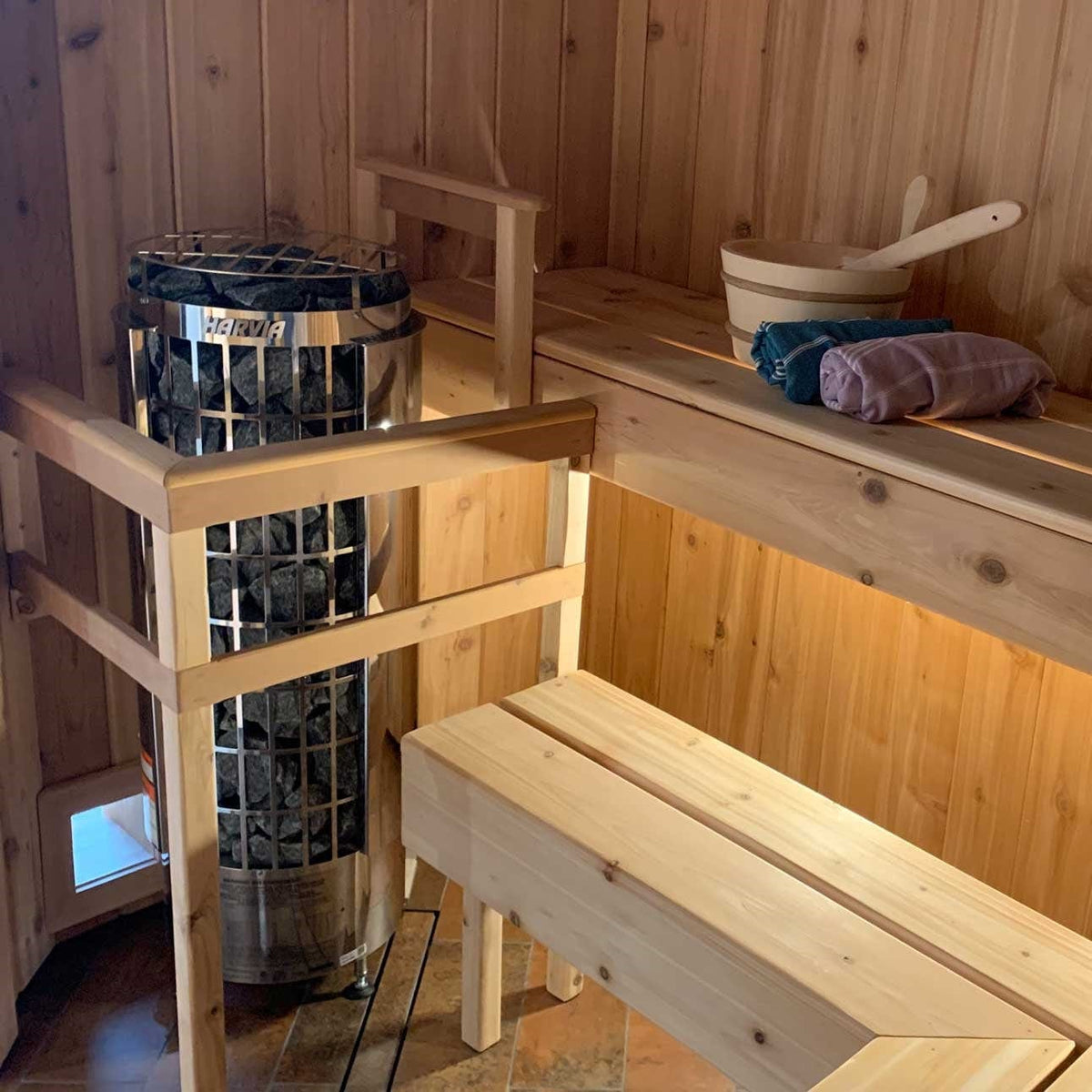

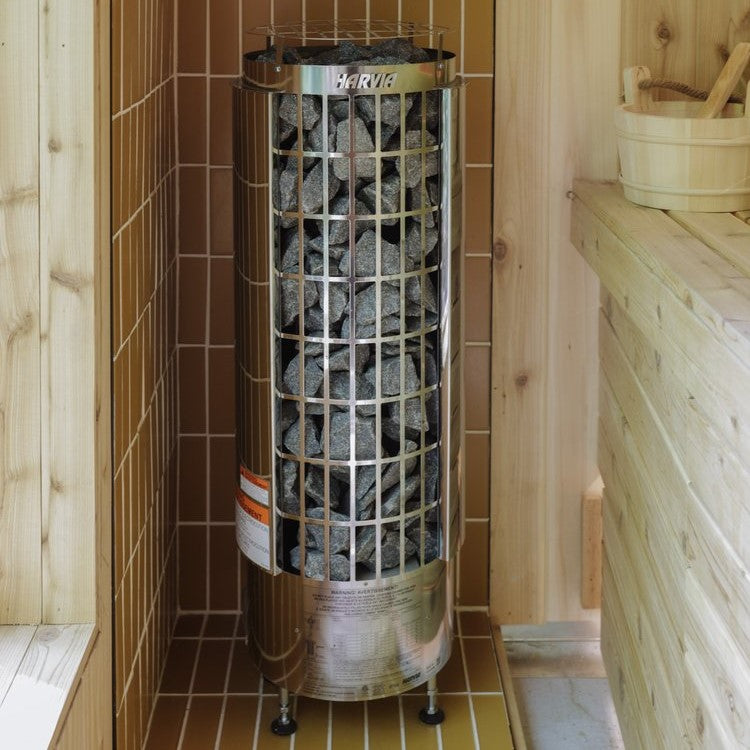

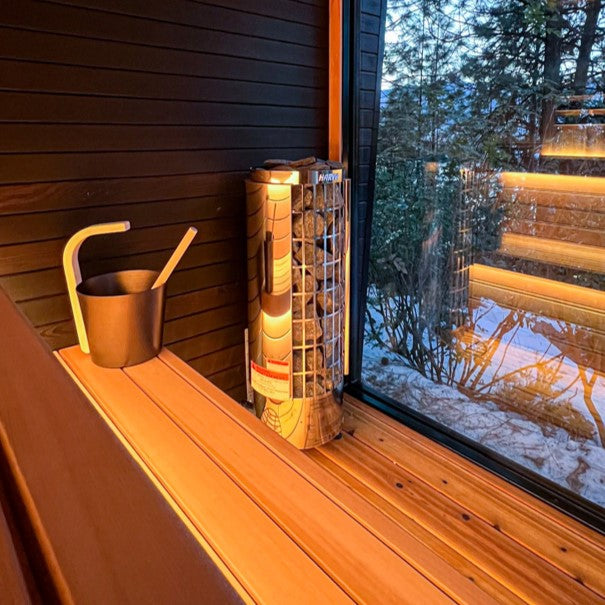

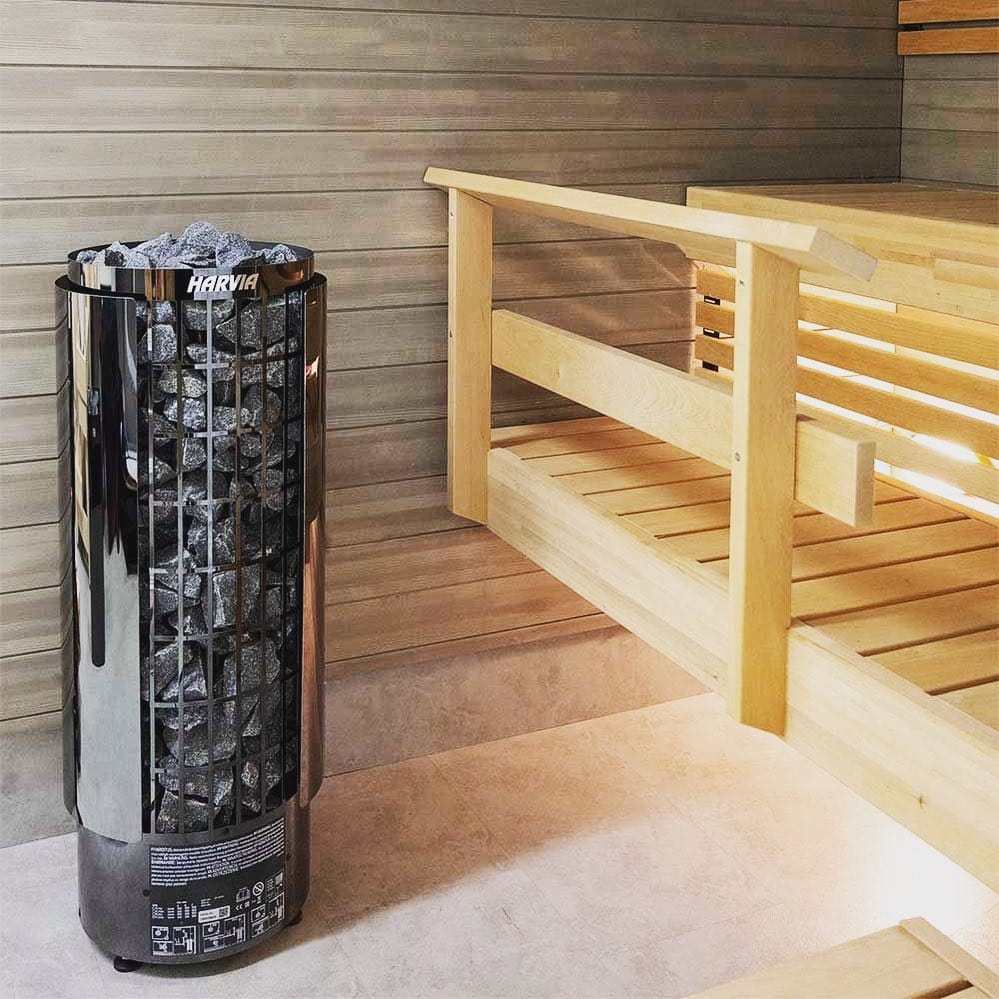

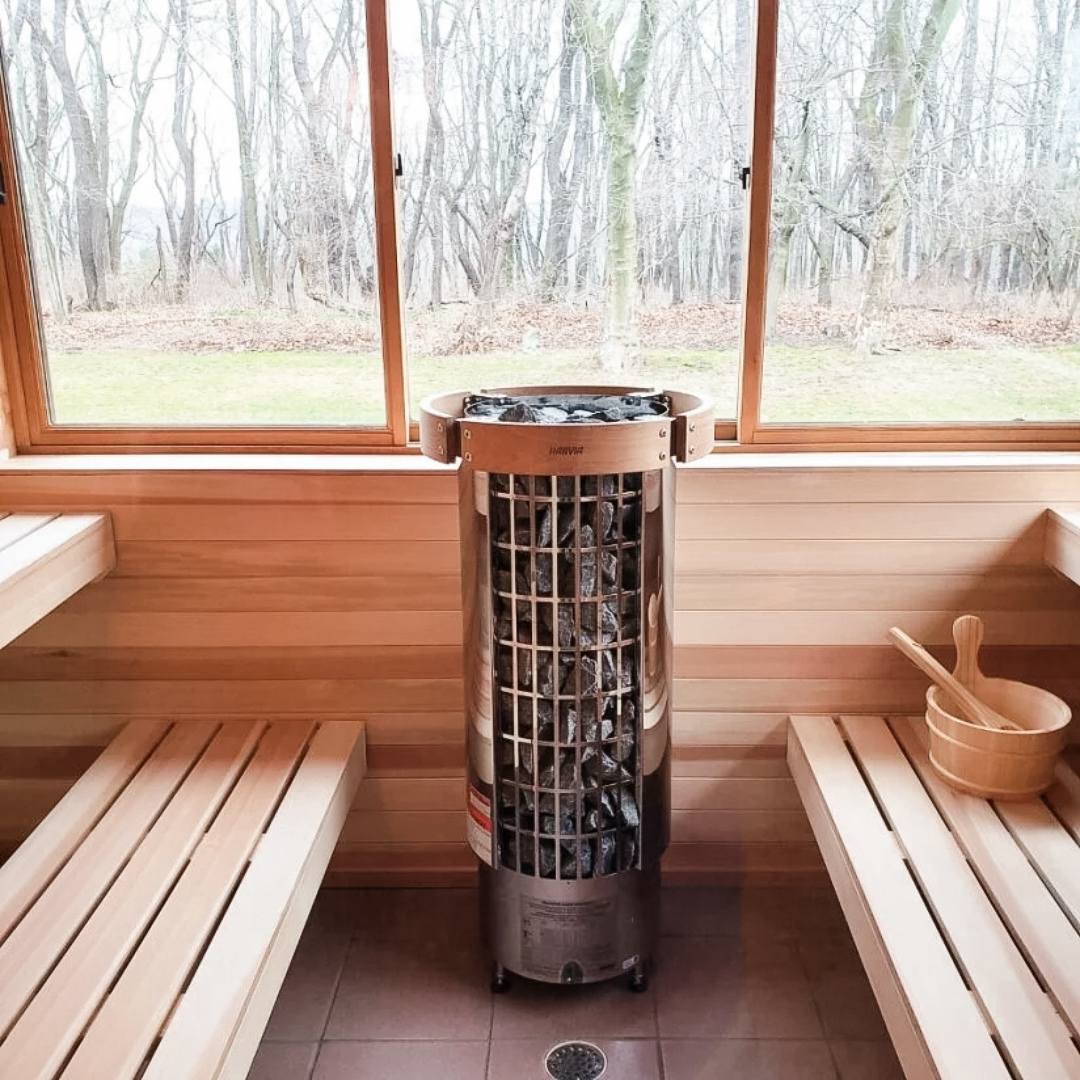

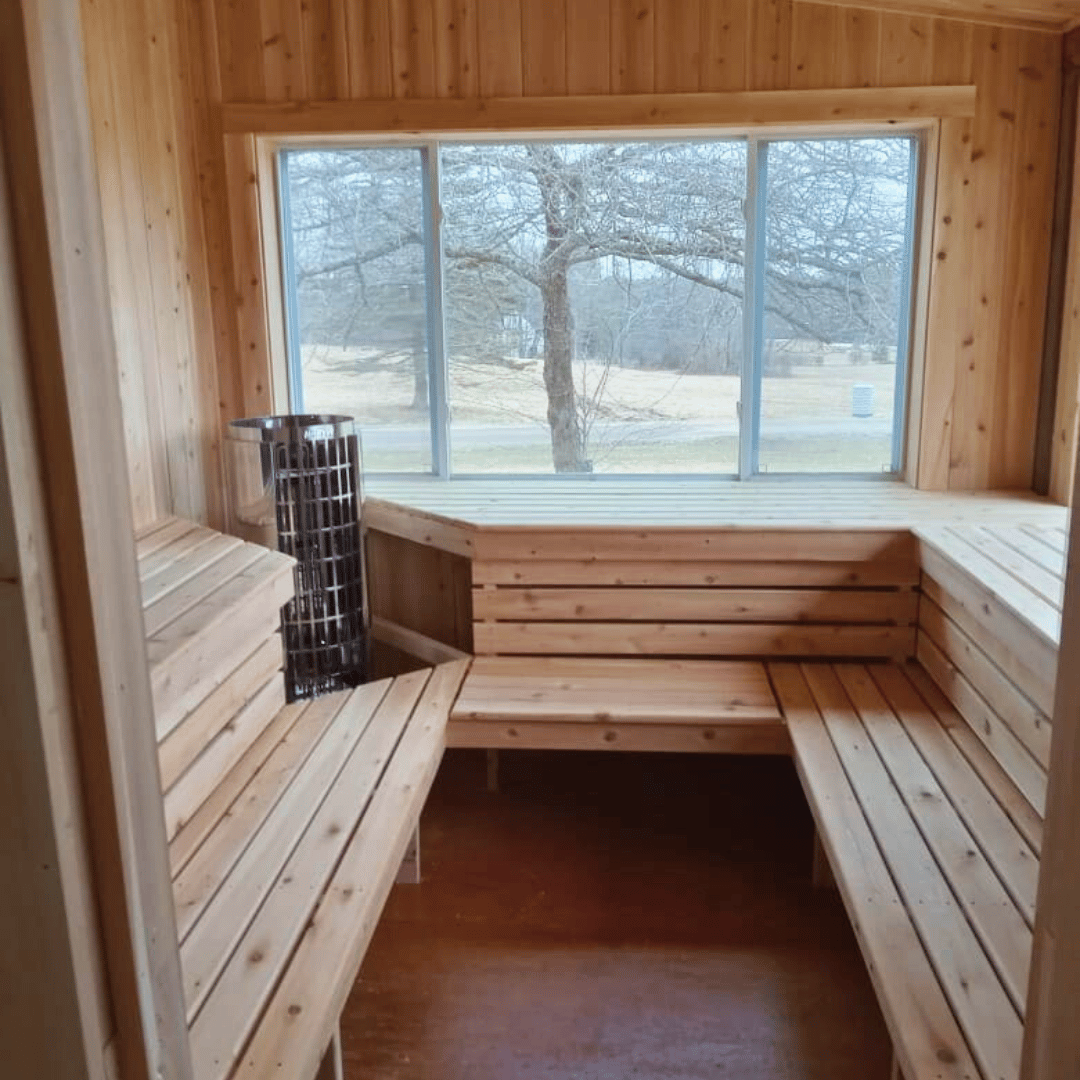

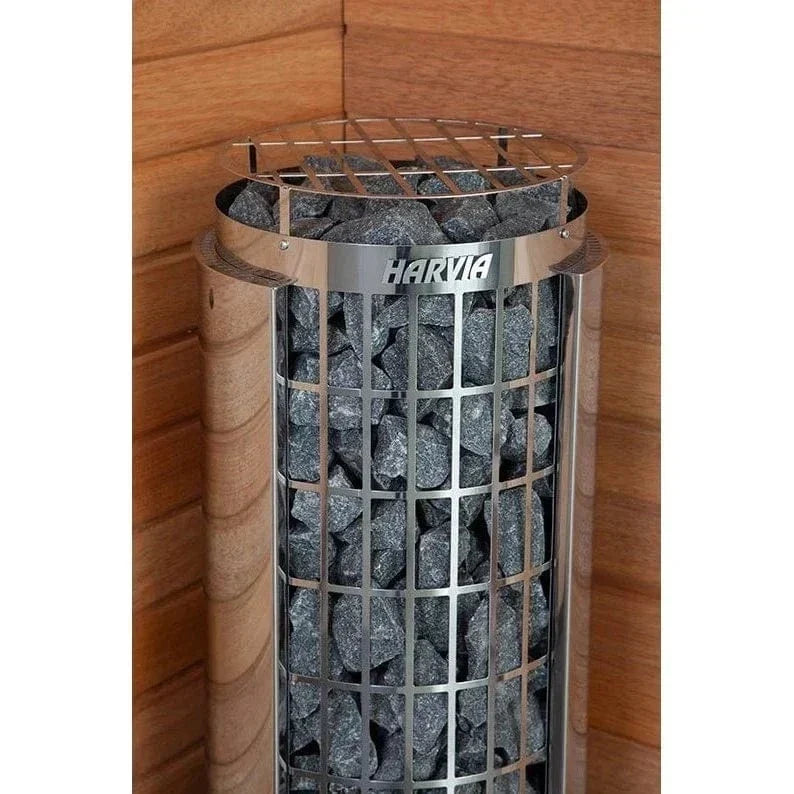

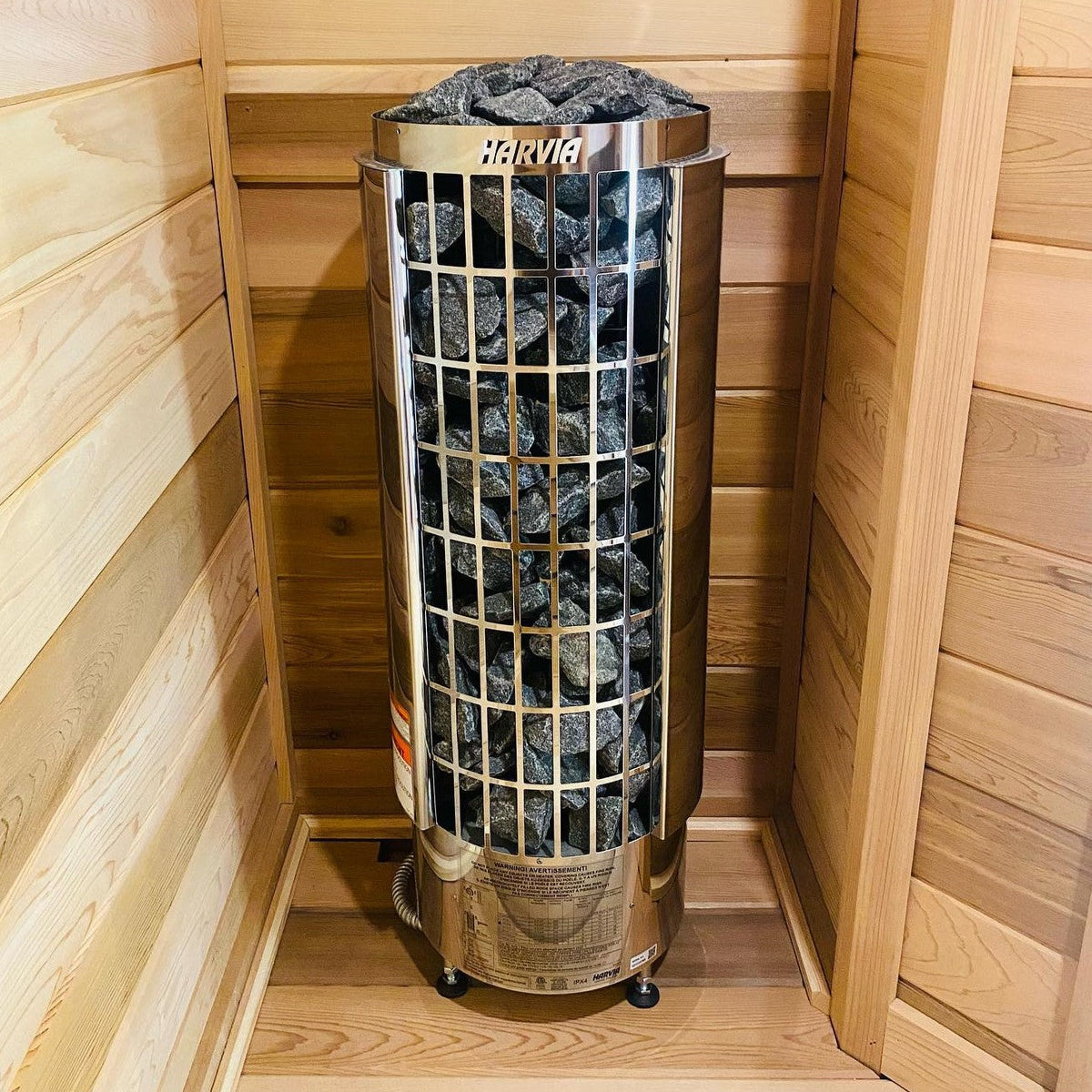

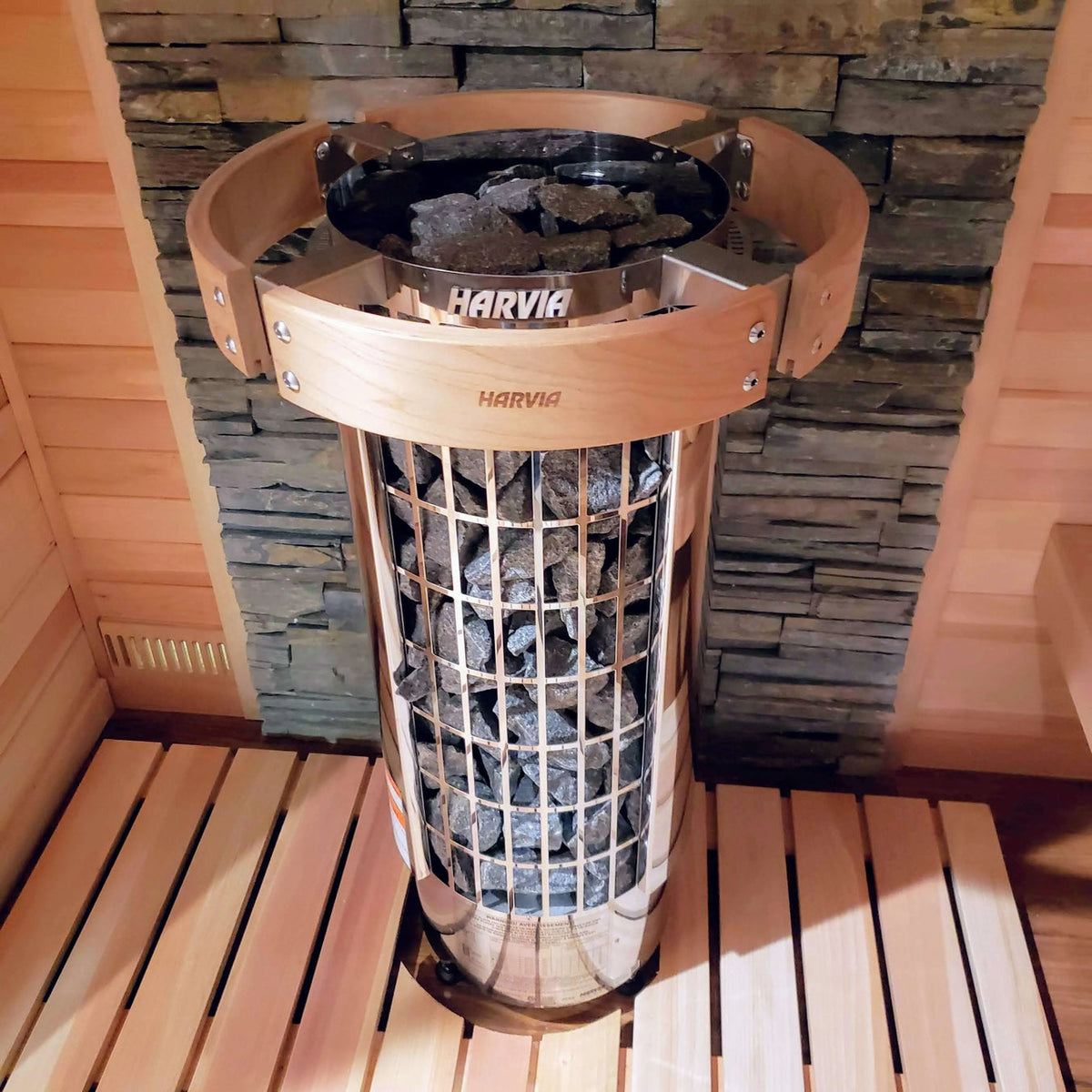

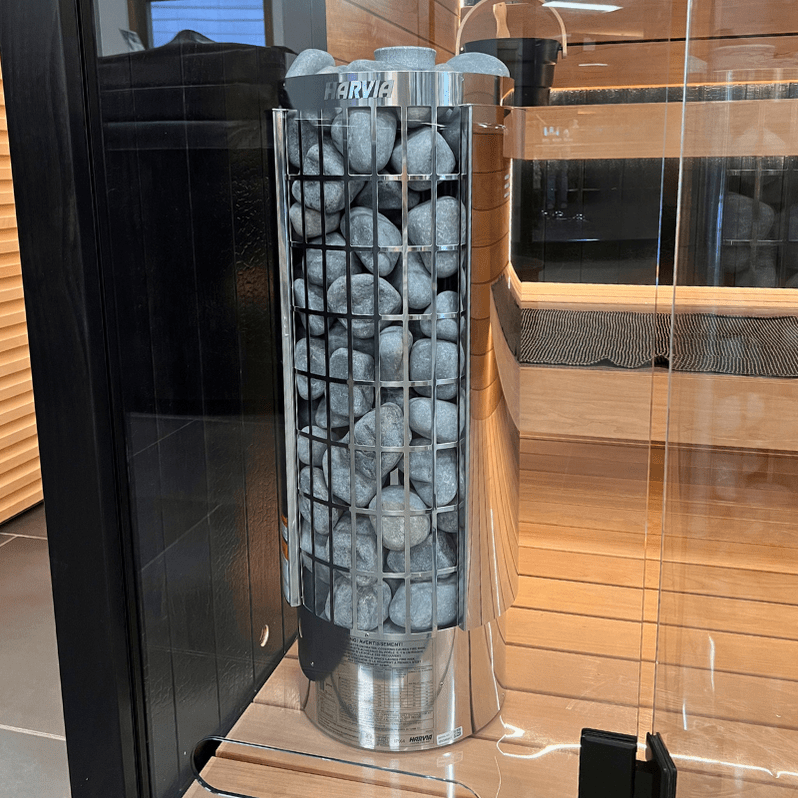

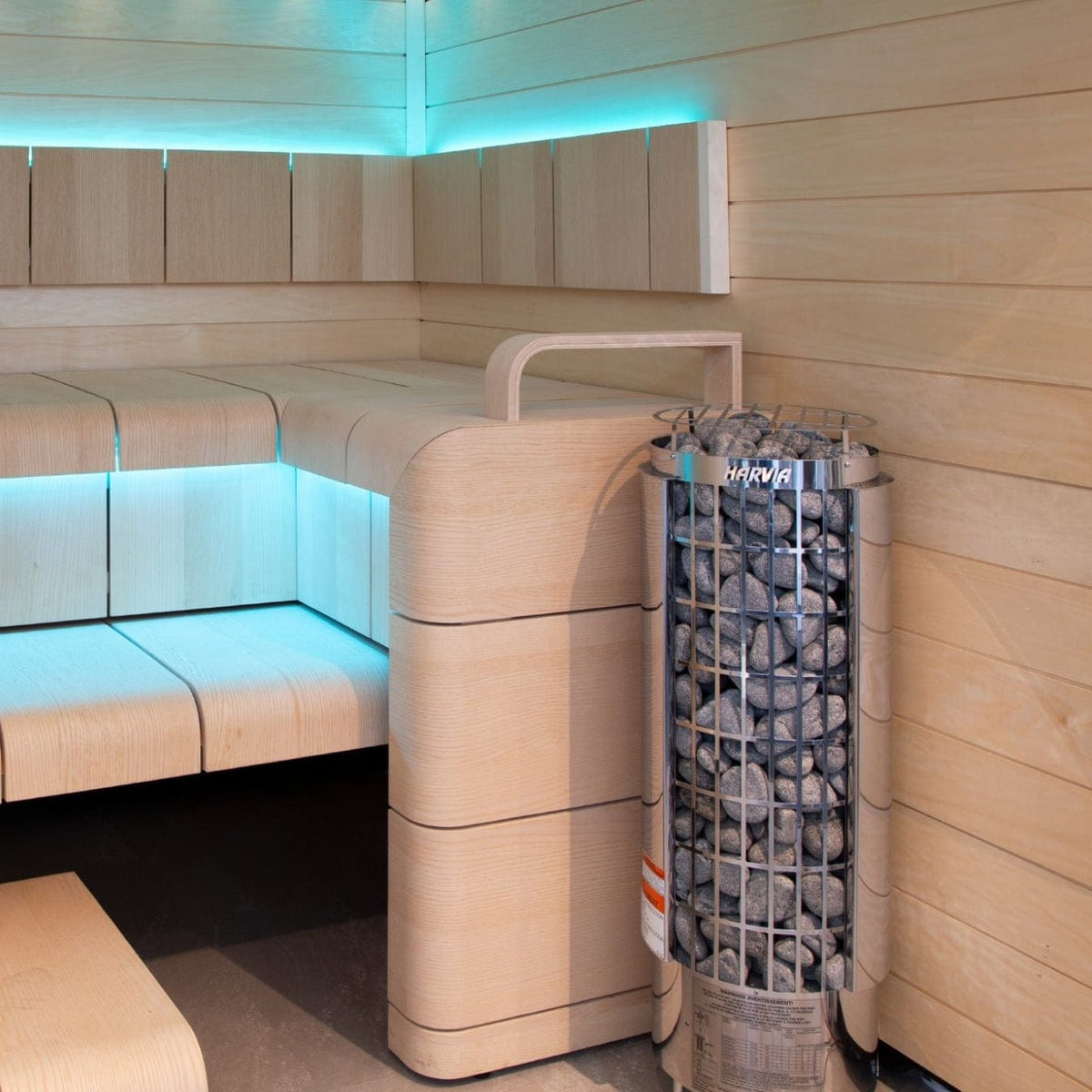

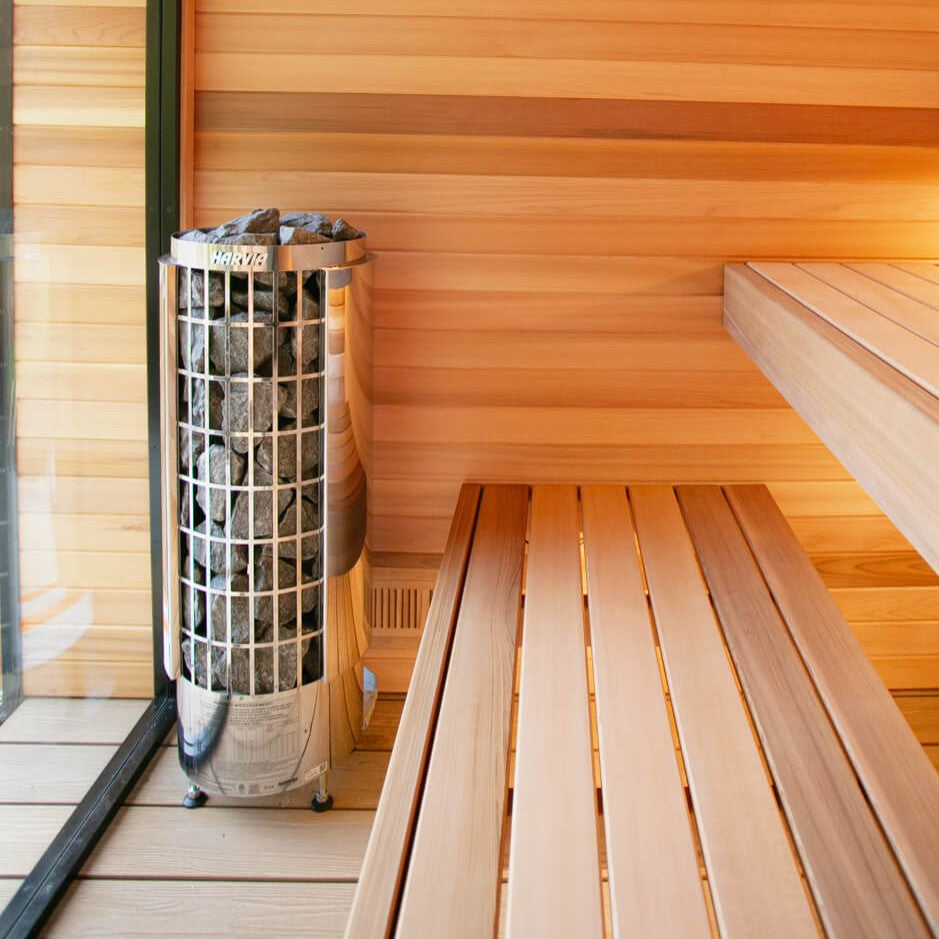

Harvia Cilindro PC110E Sauna Heater

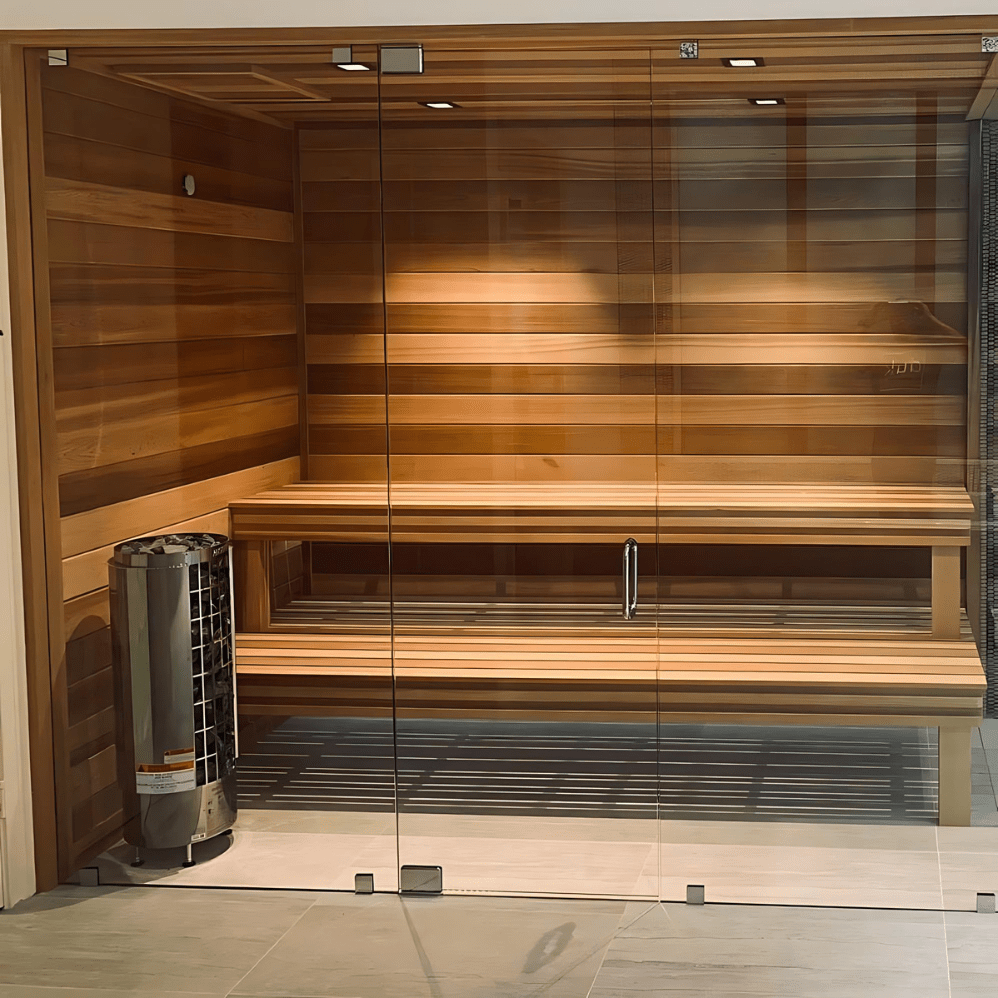

The Harvia Cilindro PC110E is a 10.5kW electric sauna heater featuring a pillar-style design and steel construction. It is designed for sauna rooms ranging from 141 to 636 cubic feet and accommodates approximately 265 lbs of sauna stones.

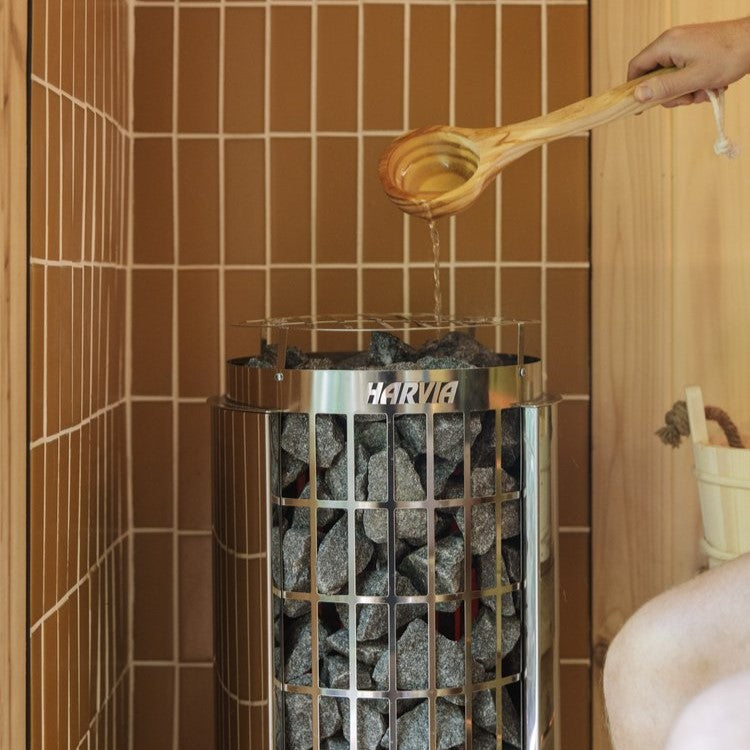

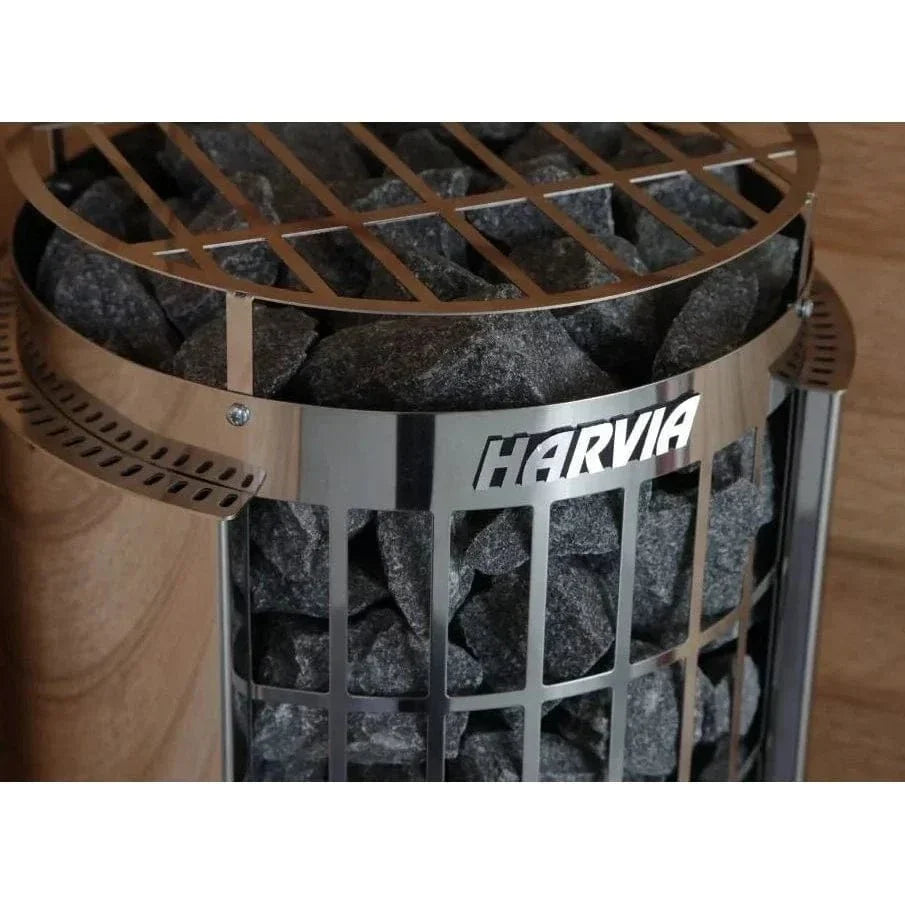

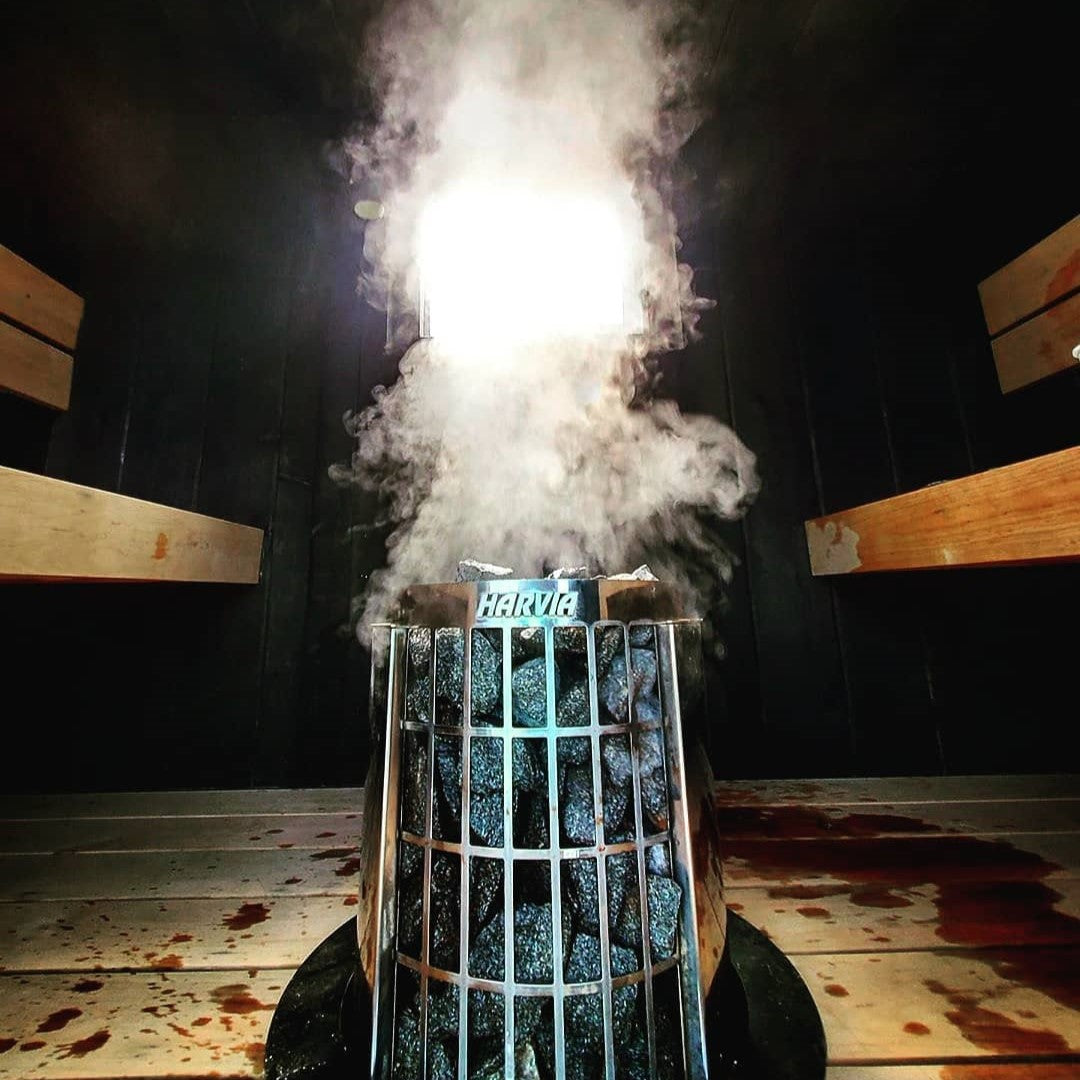

The open pillar structure exposes a large stone surface, allowing water to be added to the stones to create different levels of steam. The heater's vertical design also allows flexible placement within the sauna.
Key Features
| Feature | Details |
|---|---|
| Power | 10.5kW electric sauna heater |
| Sauna Room Size | 141–636 cu. ft. |
| Electrical | 240V, single-phase, 60Hz |
| Construction | Steel construction |
| Heating Elements | Stainless steel heating elements |
| Stone Contact | Direct rock-to-heating-element contact |
| Heating Elements | Industrial-grade, serviceable heating elements |

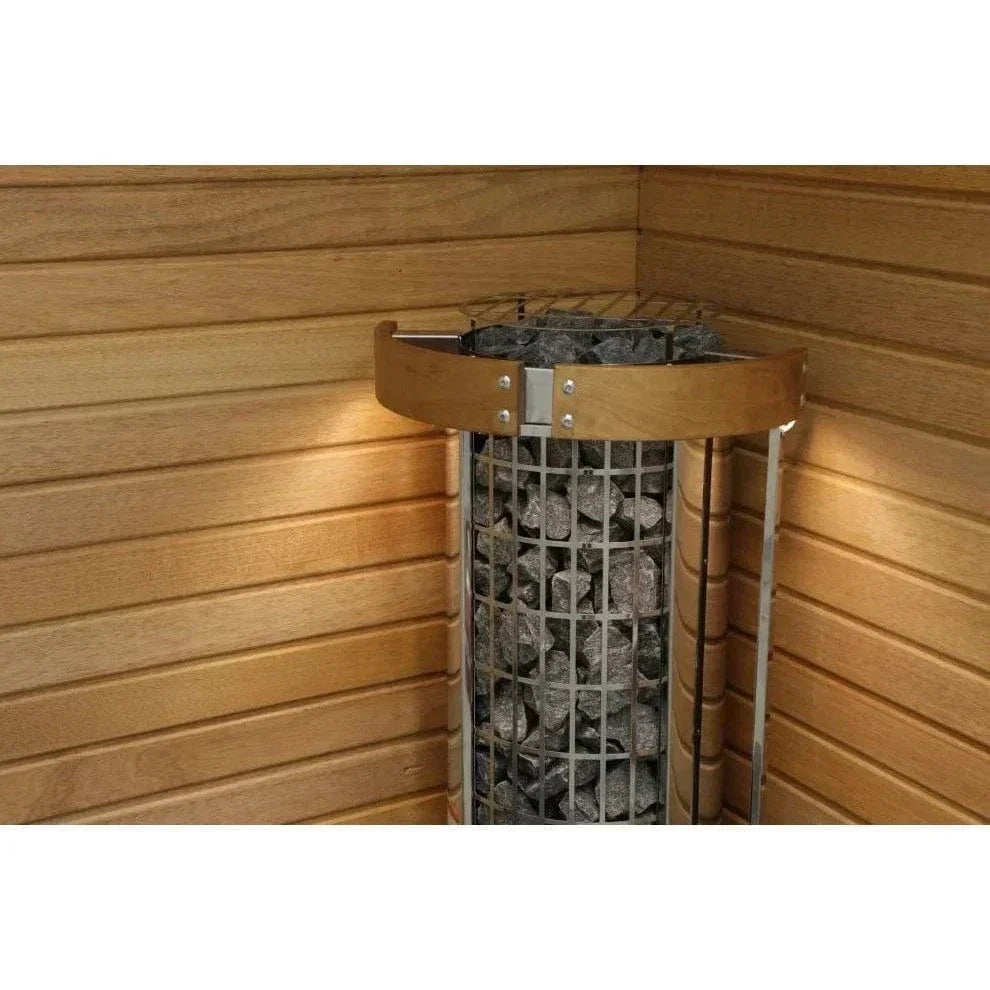

| Installation | Vertical installation with side-wall or corner placement options |
| Stone Capacity | Approximately 265 lbs (120.2 kg) of sauna stones |
| Origin | Made in Finland |
| Dimensions | 16"W × 15"D × 45"H (406 × 381 × 1143 mm) |

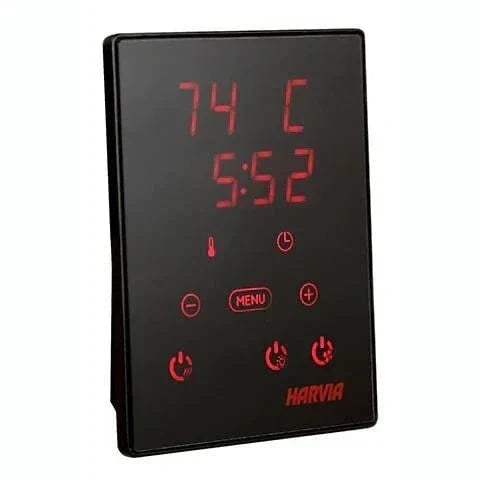

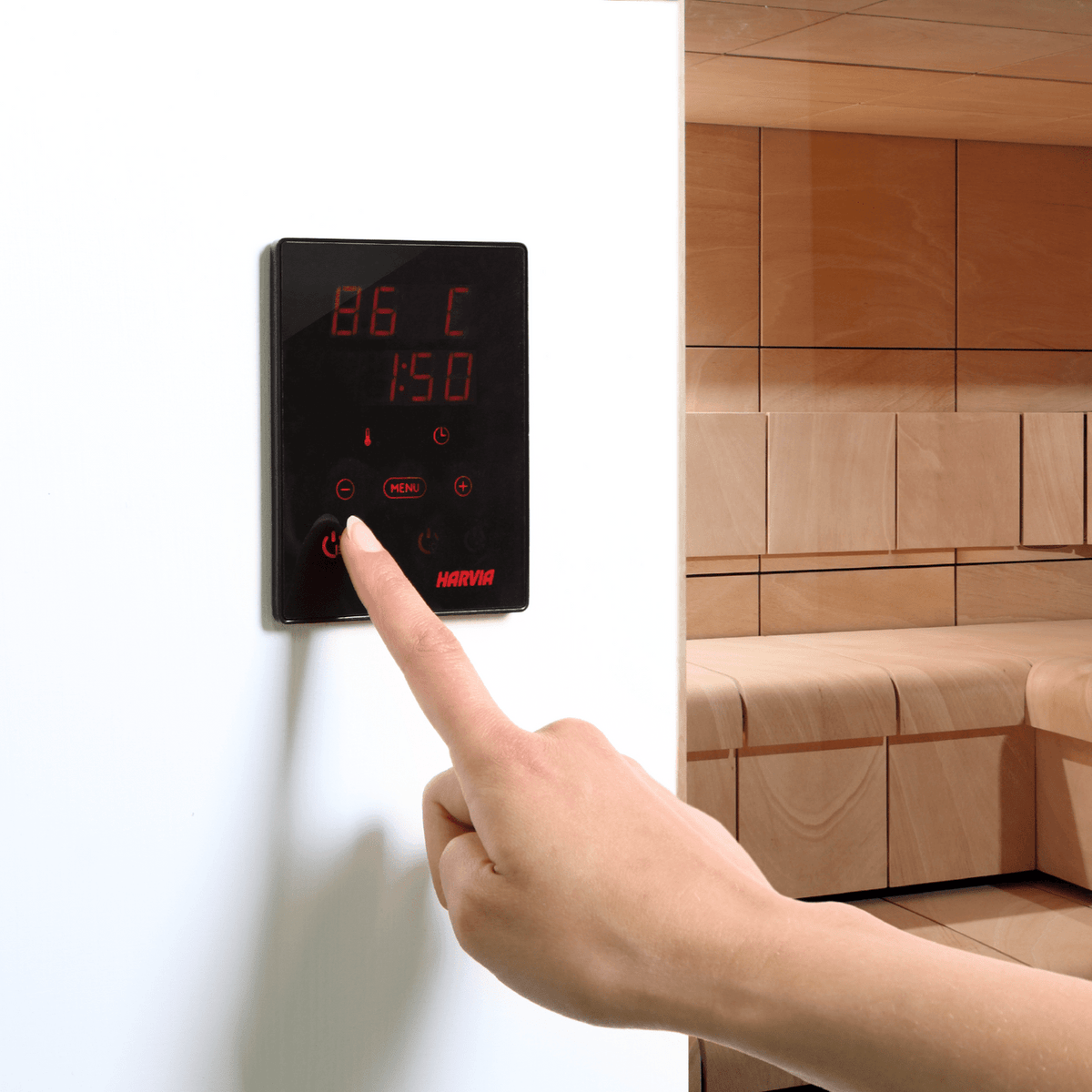

Harvia Xenio CX45 Sauna Control Package
The included Harvia Xenio CX45 control package provides convenient control over sauna temperature and operating time, as well as connected lighting and fan functions.
The CX45 is designed for compatible Harvia electric sauna heaters, including Cilindro, Club, and Virta series heaters. It is not intended for Combi heaters.
Xenio CX45 Features
| Feature | Details |
|---|---|
| Compatibility | Compatible with Cilindro, Club, and Virta series heaters; not for Combi heaters |
| Operating Time | Controls sauna operating time |
| Temperature | Controls sauna temperature |
| Lighting | Controls connected sauna lighting |
| Fan | Controls connected sauna fan |
| Installation | Wall-mounted or surface-embedded installation |
| Dimensions | 3.4"W × 1"D × 4.4"H |

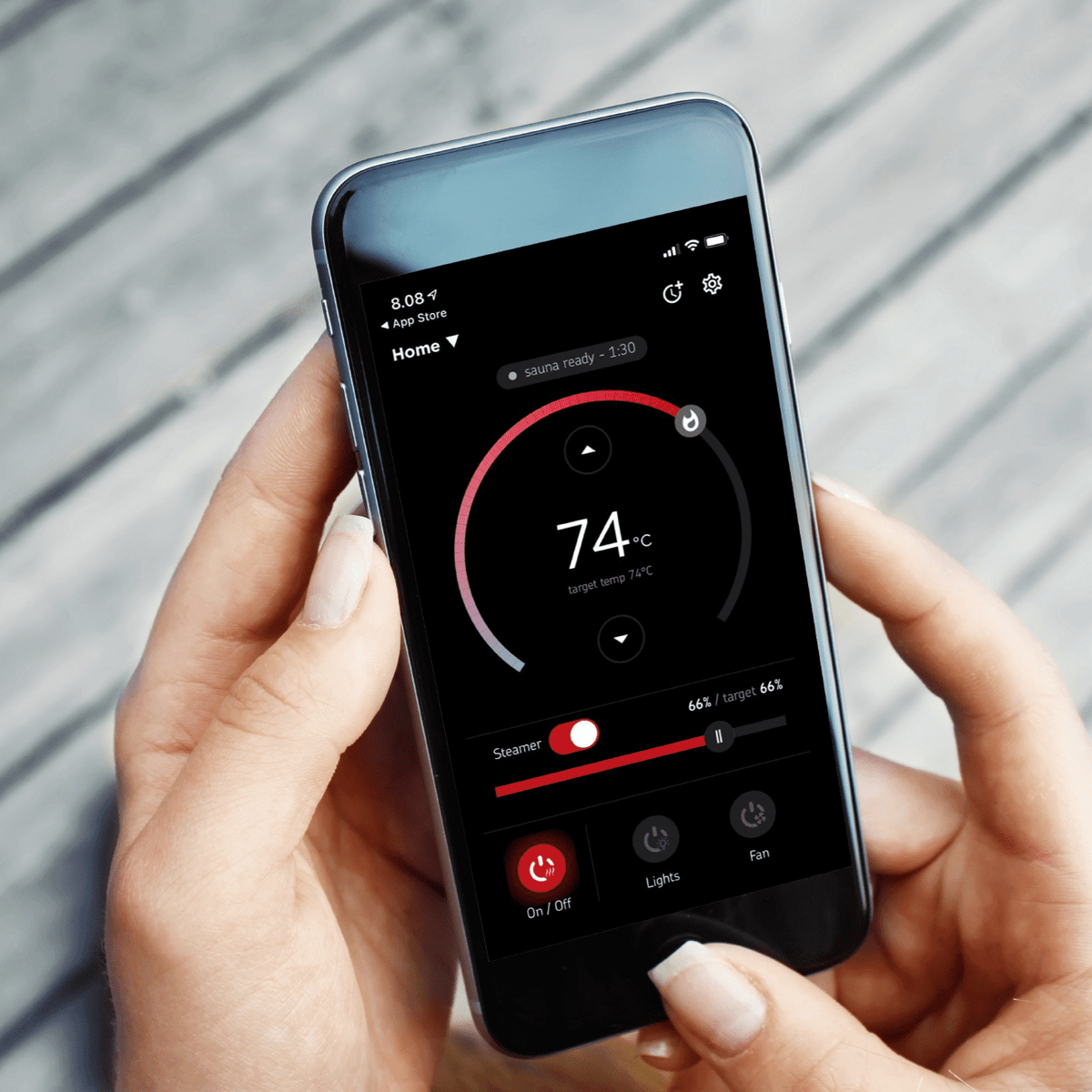

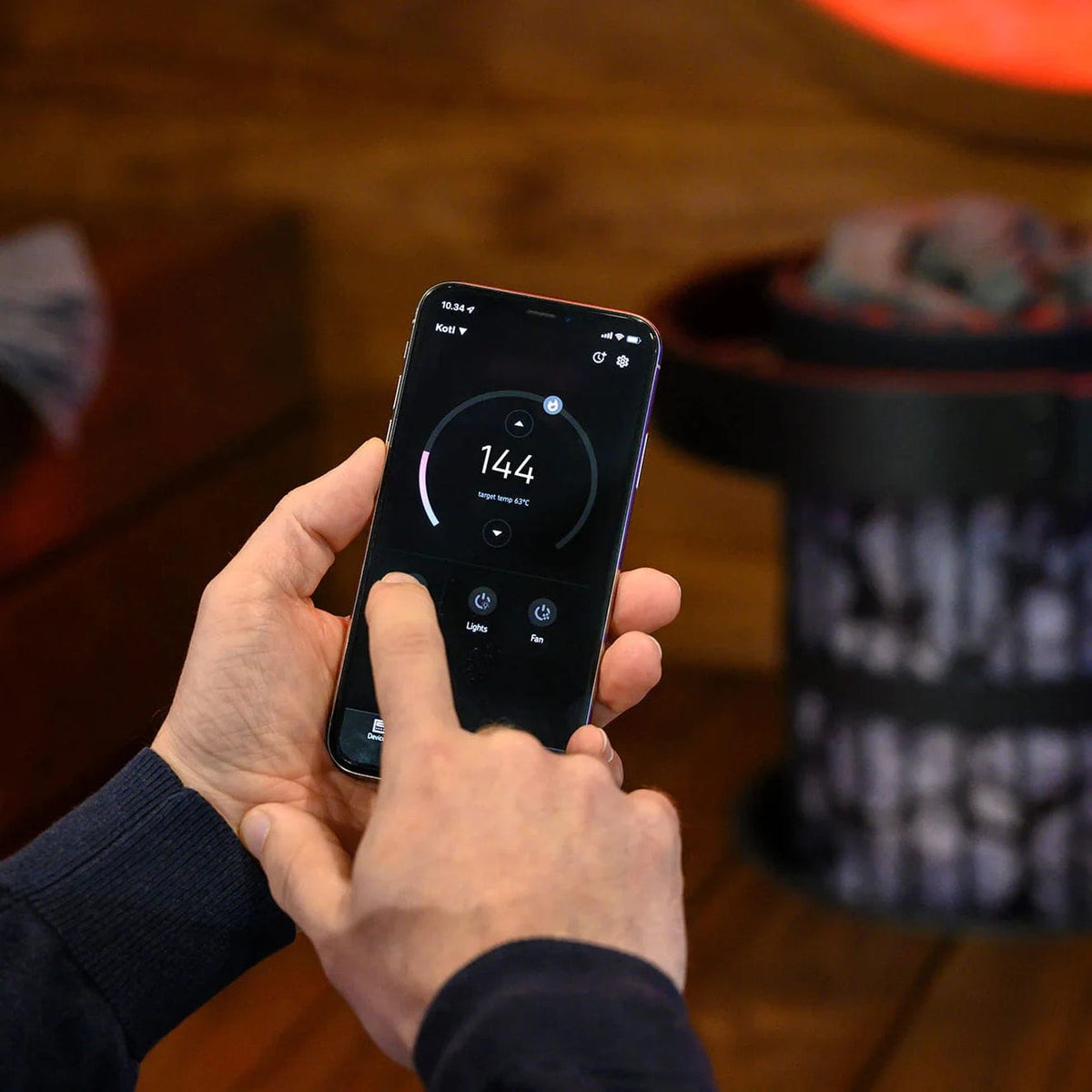

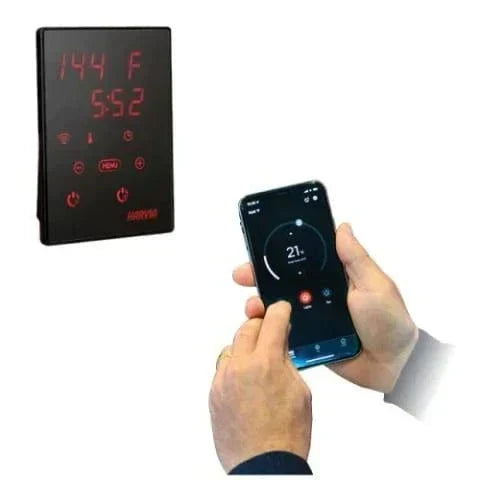

Optional Harvia Xenio WiFi Controller
An optional Harvia Xenio WiFi Controller can add WiFi connectivity to compatible Xenio control systems, allowing remote sauna control through the MyHarvia application.
WiFi Controller Features
- WiFi connectivity for remote sauna control
- Temperature adjustment
- Operating time control
- Timed start
- Week clock scheduling
- Lighting control
- Fan control
- Safety device option
- Time zone selection
- Daylight saving selection
- Humidity adjustment
- Control panel updates
- Can connect to multiple devices
- MyHarvia application availability varies by country
The WiFi controller has an operating temperature adjustment range of approximately 104–194°F and measures approximately 3.4"W × 1"D × 4.4"H.

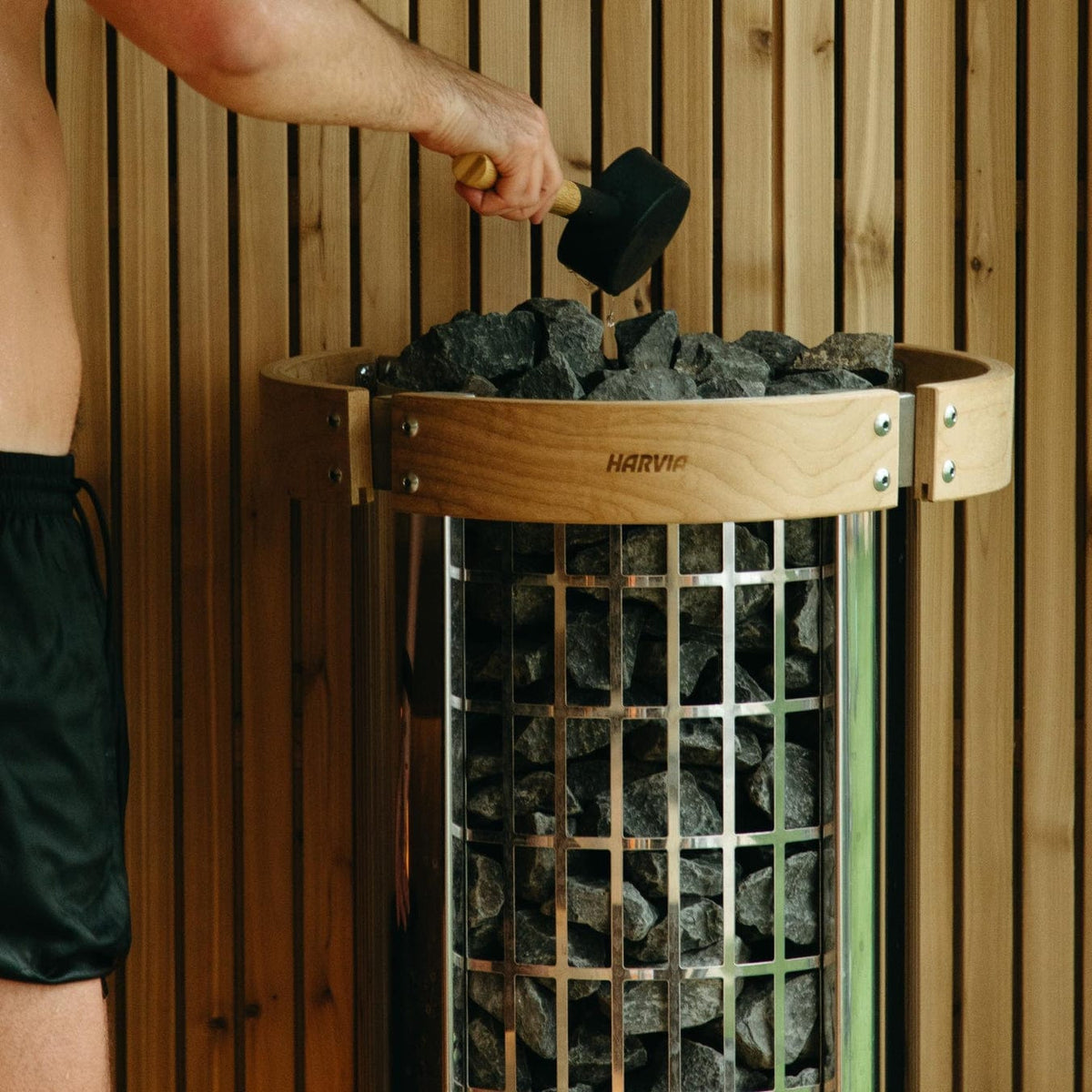

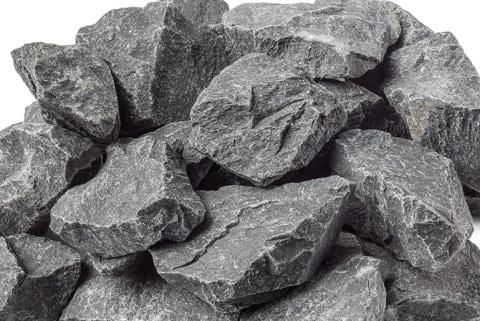

Harvia AC3000 Special Sauna Stones
The package includes six boxes of Harvia AC3000 Special Sauna Stones. These stones are designed for use with Cilindro sauna heaters and are selected for their ability to withstand sauna temperatures, retain heat, and produce steam when water is added.
The stones are approximately 2–4 inches (5–10 cm) in size. Because natural sauna stones vary in shape and size, an additional box may be useful when selecting stones for the best fit and arrangement.
Electrical Requirements
The Harvia Cilindro PC110E is designed for 240V single-phase, 60Hz electrical service and has a nominal current draw of approximately 43.75 amps.
Electrical installation should be completed by a qualified electrician. Follow the current Harvia installation manual and applicable local electrical codes for the required circuit breaker, wiring, connections, and installation clearances.
Specifications
| Specification | Harvia Cilindro PC110E |
|---|---|
| Model | HPCS11U1HUL / PC110E |
| Kilowatt Rating | 10.5 kW |
| Primary Fuel | Electric |
| Minimum Sauna Room Volume | 141 cu. ft. |
| Maximum Sauna Room Volume | 636 cu. ft. |
| Voltage | 240V |
| Phase | 1 |
| Frequency | 60Hz |
| Nominal Amps | 43.75A |
| Heater Weight | 46.3 lbs |
| Stone Capacity | Approximately 265 lbs (120.2 kg) |
| Width | 16" (406 mm) |
| Depth | 15" (381 mm) |
| Height | 45" (1143 mm) |
| IP Rating | IPX4 |
Installation & Safety
Installation should follow the current Harvia installation instructions and all applicable local electrical and building codes. Maintain the required minimum safety clearances around the heater and above the heater as specified by Harvia.
The PC110E is a vertically installed heater and should be installed according to the manufacturer's specified clearances and connection requirements. The supplied temperature sensor and control equipment should be installed according to the applicable Harvia instructions.
Harvia PC110E Manuals & Documents
For installation, operation, stone placement, control setup, and maintenance, refer to the applicable Harvia documentation:
- Cilindro PC110E Installation & Operation Manual
- Harvia Sauna Stone Requirements
- Harvia Elements Documentation
- Xenio CX45 Installation & Operation Manual
- Xenio WiFi Installation & Operation Manual
- Xenio WiFi Data Sheet
- Control Compatibility Specifications
Important: Always use the latest Harvia installation and operating documentation for final electrical connections, safety clearances, temperature-sensor placement, and installation requirements.
