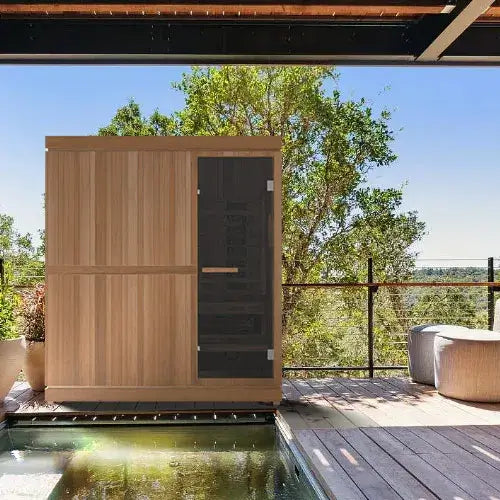

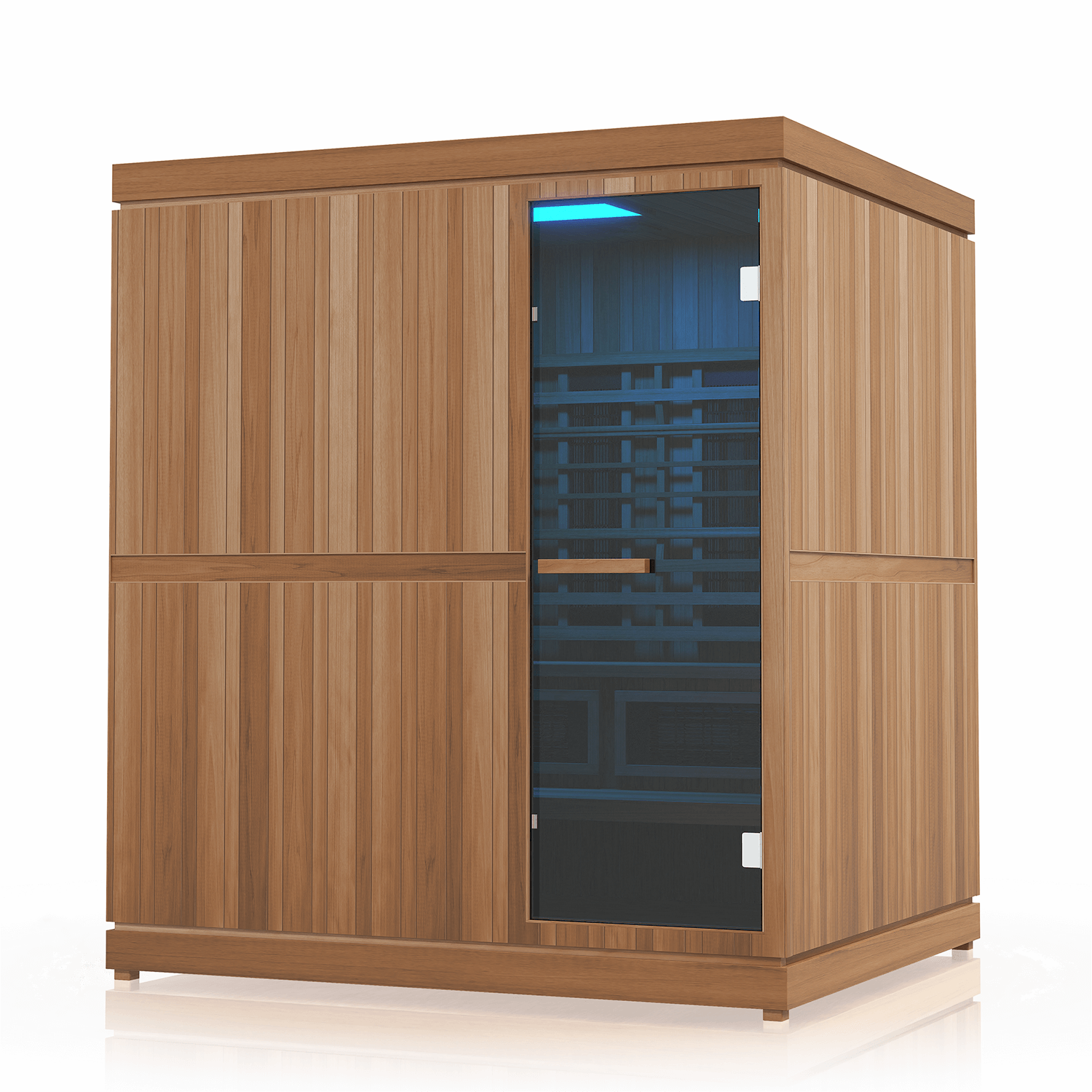

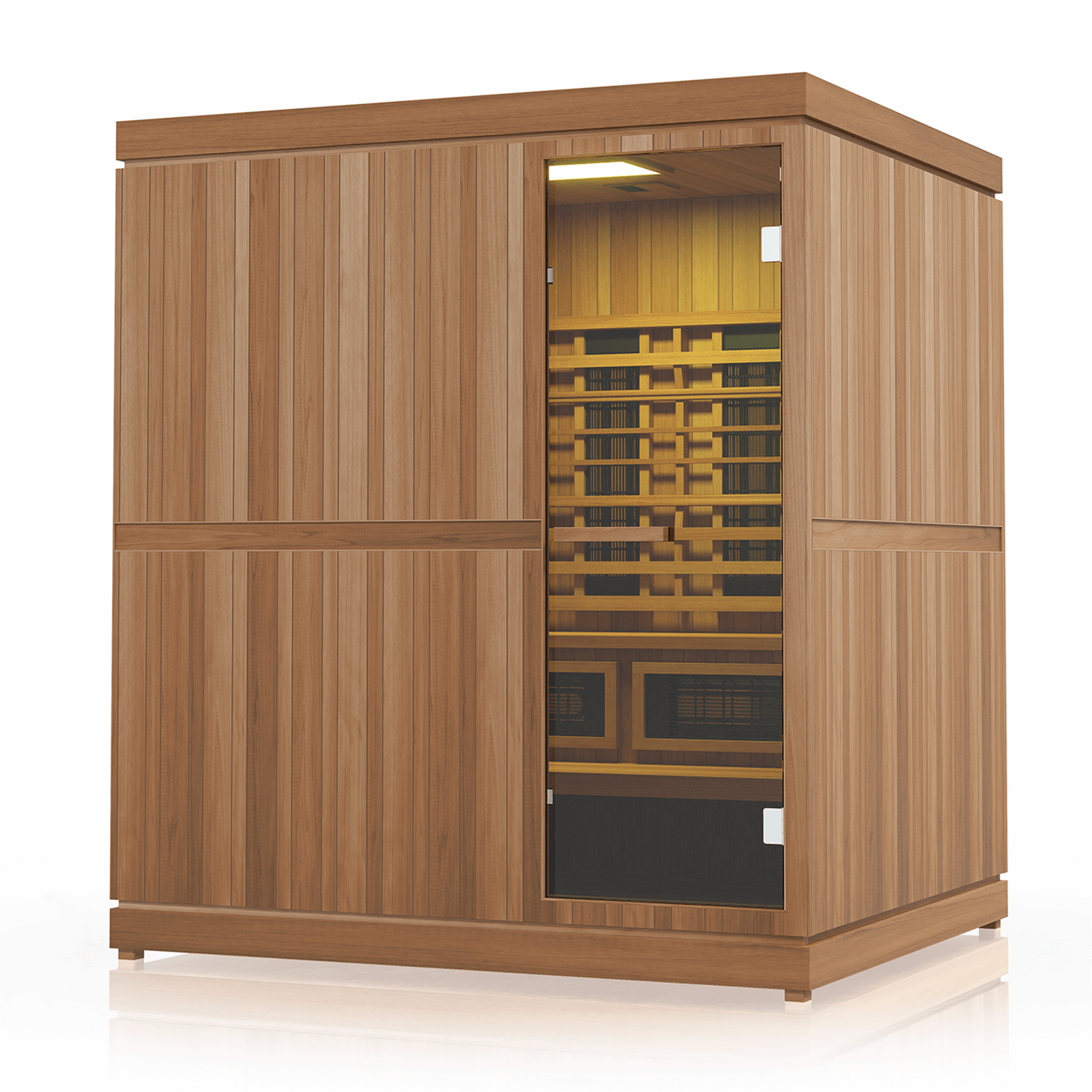

Finnmark FD-5 Trinity XL Infrared and Traditional 4-Person Hybrid Sauna
Finnmark FD-5 Trinity XL Sauna Combo
75"W x 64"D x 83"H
Premium 3-in-1 Combination Sauna Experience

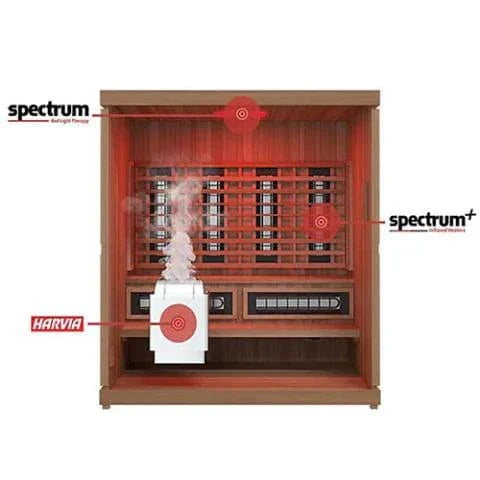

Introducing the FD-5 Trinity Combination Sauna by Finnmark, a unique fusion of UL-listed Spectrum Plus infrared heaters, a traditional sauna heater, and vulcanite sauna stones for consistently radiant heat.
Elevate your wellness routine by splashing water onto the rocks for a revitalizing steam burst, and experience medical-grade Spectrum Red Light™ Therapy for a complete home wellness sanctuary.
Eco-Friendly and High-Efficiency Design
No compromises needed. The FD-5 Trinity is the only combination sauna featuring true UL-listed infrared heater panels combined with a traditional sauna heater.
The system integrates:
- Infrared heat therapy
- Red light therapy
- Traditional steam sauna heating
This seamless combination delivers both infrared warmth and the timeless experience of steam infused with aromatic sauna rocks.

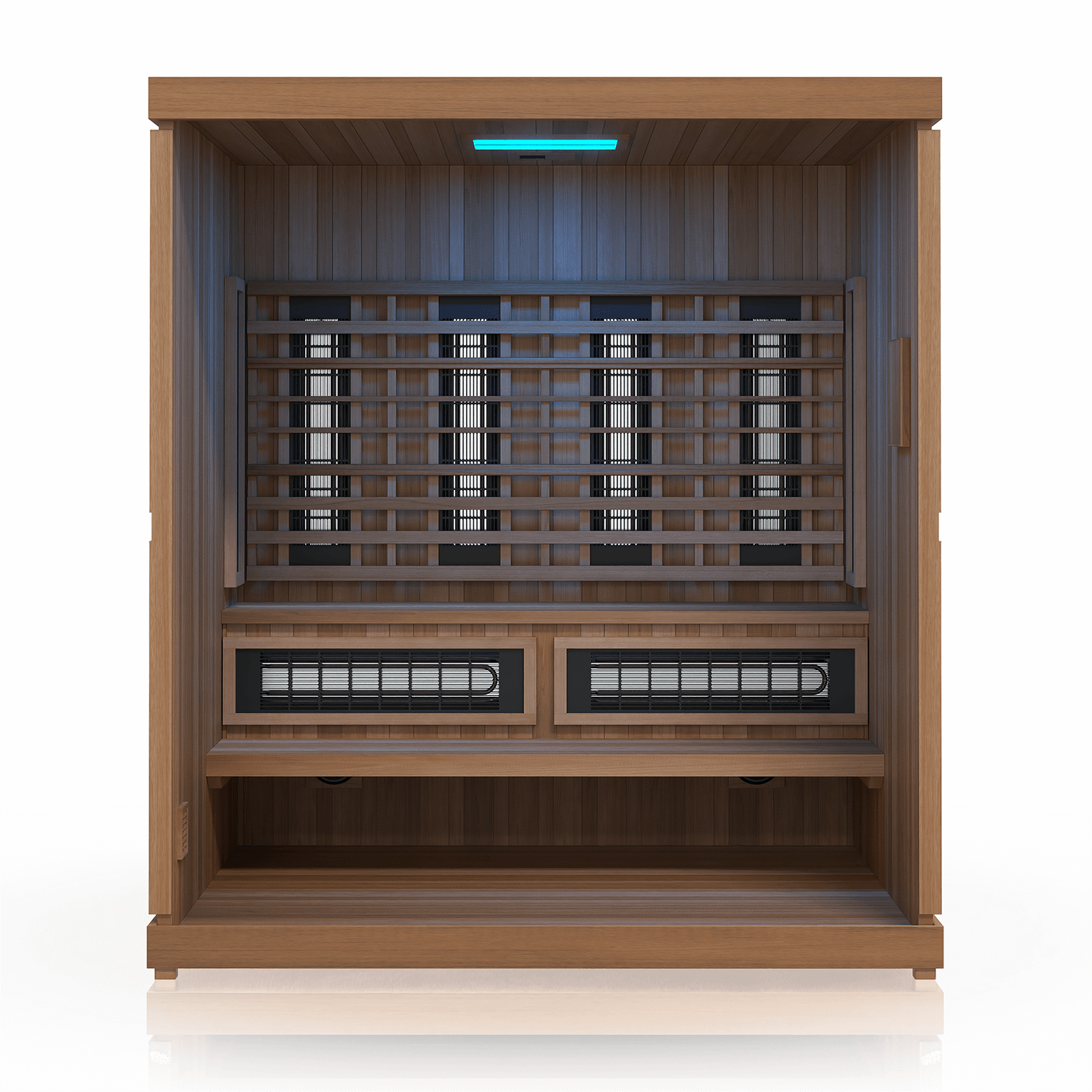

Advanced Heating Performance
Experience rapid heating with UL-tested IR heaters by Underwriter Laboratories, paired with a powerful traditional 240V/1PH 4.5kW sauna heater.
- Short-wave far infrared penetrates deeply into muscles and joints
- Produces up to 25x more sweat than carbon panel heaters
- Traditional heater enables authentic steam sauna experience through water on heated stones
- Delivers unmatched intensity and wellness benefits unique to steam saunas
Spectrum Red Light™ Therapy
Enjoy advanced phototherapy technology with a 192-diode medical-grade LED panel delivering:
- 650nm red light therapy

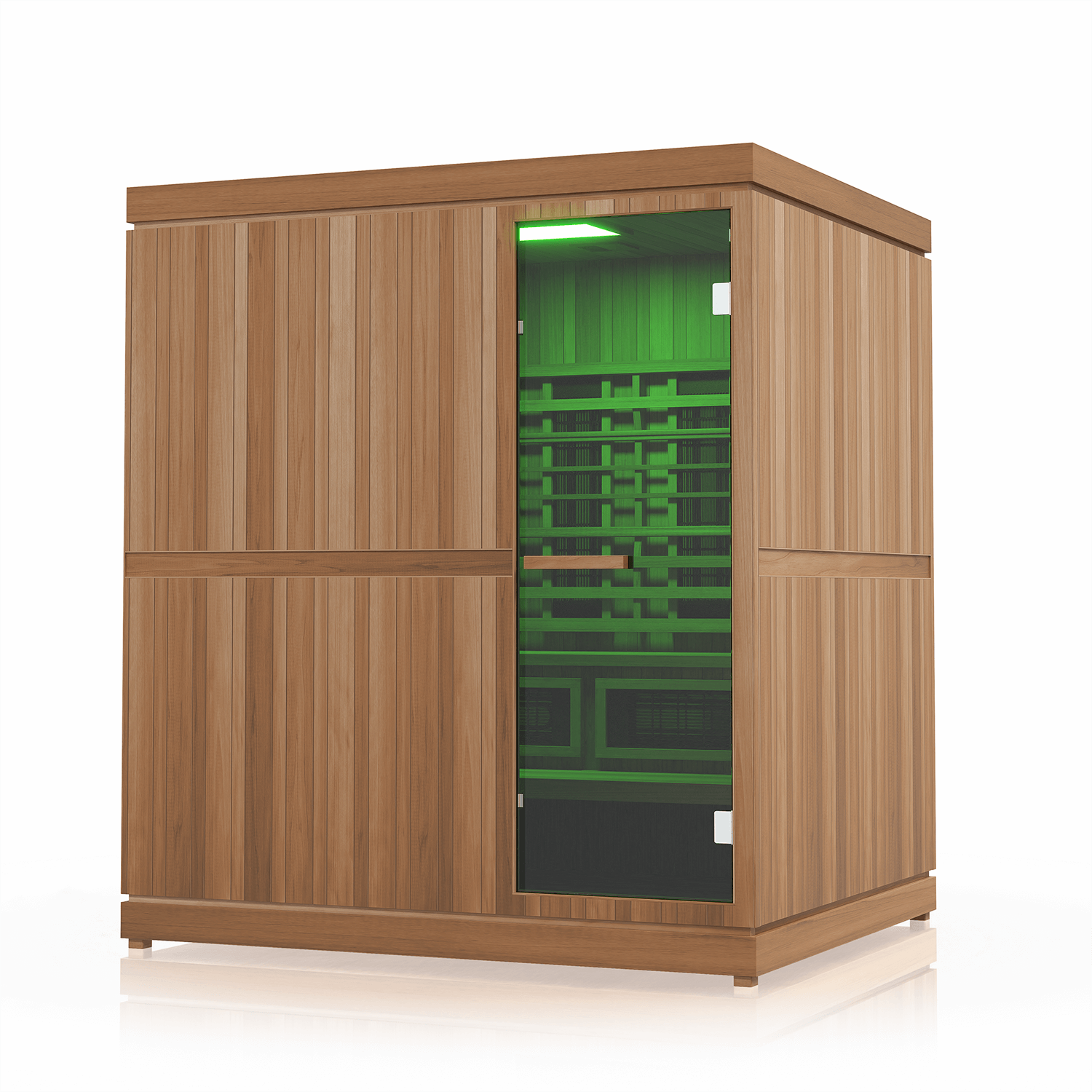

- Combined chromotherapy
Supports skin and wellness benefits by stimulating collagen and deeper tissue response.
Premium Materials & Construction
- Antimicrobial Western Canadian cedar interior (resists mold, bacteria, fungus)
-
Thermal Plus™ Aspen exterior (resistant to rot, warp, decay, and chipping)
-
8mm tempered glass for superior heat retention

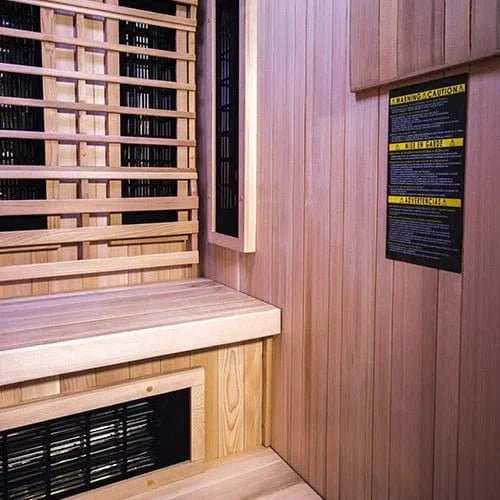

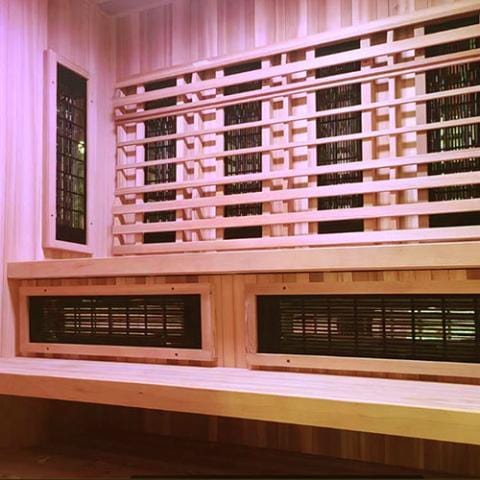

- Extra-large two-tier bench system
Smart Technology & Audio System
- Built-in LCD touchscreen controller
- Bluetooth audio connectivity
- 6" HiFi marine-grade speakers
- Low EMF design tested by NASA award-winning facility
- High emissivity infrared heaters

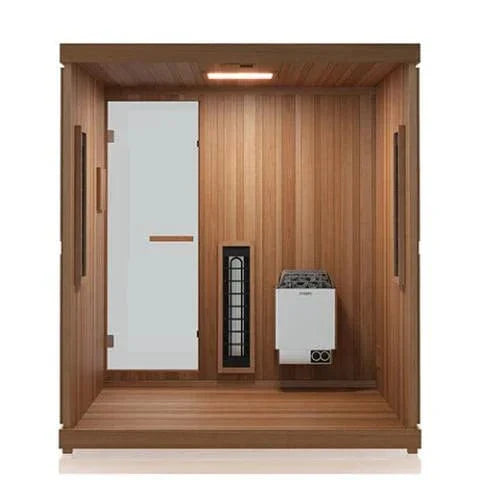

Harvia KIP Series 4.5KW Sauna Heater
- Wall-mounted design
- Stainless steel construction
- 240V / 1PH, 4.5kW heater with built-in controls
- Suitable for sauna rooms: 100–210 cu. ft.
- Requires minimum 50 lbs of stones (1 box - AC3000)
- Direct rock-to-element contact
- Industrial-grade serviceable heating elements
- UL listed
- Designed, engineered, and made in Finland
Dimensions: 16"W (406mm) x 11"D (279mm) x 24"H (609mm)
Warranty: 2-Year Consumer Use Warranty
Manufacturer Note: Sauna stones are essential for safety. Proper maintenance is required to keep warranty valid.
Package Contents
- Bottom Panel
- Top Panel
- Back Panel
- Front Panel
- Left Panel
- Right Panel
- Glass Door
- Bench Support
- Bench Top
- Heater Cable
- Floor Cable
- Screws
- Power Supply Unit
- Power Cable
- Interior Heater Connections with Wood Cover
- Door Handle (2 Screws)
- Infrared Sauna Heater Panels
- Harvia KIP Series 4.5kW Sauna Heater
- 1 Box Harvia AC3000 0–10cm Sauna Stones (44 lbs)
Note: Each natural stone is unique in shape and size. Additional stone box recommended for optimal fit, form, and function (additional freight charges may apply).
Certifications & Warranty
- Medical-grade LED Red Light Therapy (650nm) + chromotherapy
- V2 LCD 5" touchscreen controller with Bluetooth
- ETL Certification
- Limited Warranty
Specifications
| Model |
FD-5 |
| External Materials |
Thermo-Aspen |
| Interior Materials |
Western Canadian Cedar |
| Volts |
240 |
| IR Watts |
2700 |
| Amperage |
15 | TBD |
| Plug Type |
NEMA 5-15P |
| Maximum Temperature |
IR 170° F | Traditional 190° F |
| Interior Dimensions |
71"W x 57.5"D x 75.5"H |
| Exterior Dimensions |
75"W x 64"D x 83"H |
| Room Volume |
130 cu. ft. |
| Door Dimensions |
23.625"W x 68.875"H |
| Door Handle Dimensions |
1.5"W x 13.25"H |
| Glass Thickness |
8mm W/Gasket |
| Product Weight |
575 lbs |
| Shipping Dimensions |
36"W x 80"D |
| Shipping Weight |
654 lbs W/48 lb Pallet |
